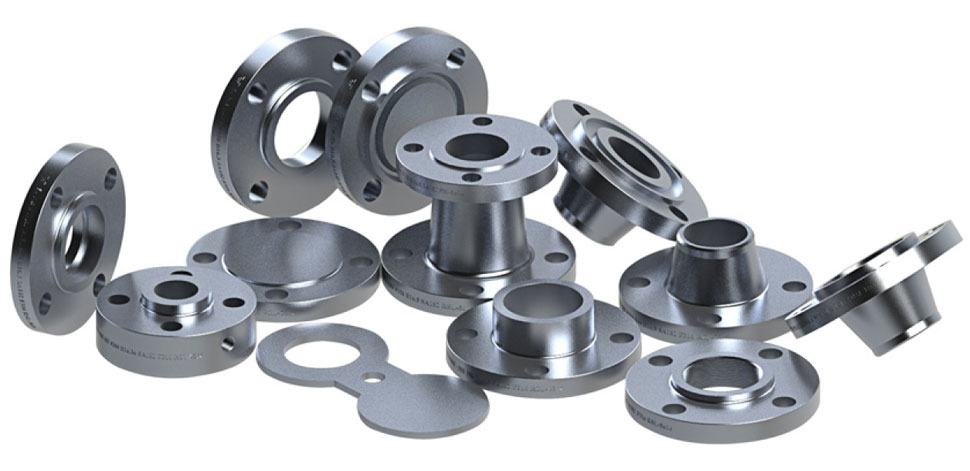

Inconel 600 Flanges Supplier, Stockist
UNS N06600 Flange, Alloy 600 Flanges, Inconel 600 Pipe Flange, 600 Inconel Raised Face Flange, Inconel 600 Flange, ASTM B564 Nickel Alloy 600 Flat Face Flange, Inconel 600 Slip on Flanges, Inconel 600 Flanges Supplier in Mumbai, India.
Inconel 600 Flanges from Pavan Metal Industries is the ideal solution for your industrial needs. The flanges offer superior corrosion and heat resistance, making them perfect for high-temperature applications. In addition, they are highly durable and long-lasting, so you can trust that your purchase will last. With its cost-effective pricing and high-quality product, you can be sure you’re getting the best value for your money. Pavan Metal Industries provides top-notch customer service, so you can always count on them to help with any of your needs. With their unbeatable expertise and experience, they will ensure that you get the perfect Inconel 600 Flanges for your project.
Table of Content
Inconel Alloy 600 Socket Weld Flange, Inconel 600 Flanges Suppliers, Inconel 600 Flanges Manufacturers, ASME SB564 600 Inconel BLRF Flange, ANSI / ASME B16.5 600 Inconel Plate Flange, 2.4816 Weld Neck Flanges, Inconel 600 Flanges Stockist in India.
Inconel 600 Flanges are commonly used in industries that require high-temperature resistance and corrosion protection. They offer superior performance to other flange options due to their unique properties, including good electrical, thermal, and magnetic properties and excellent strength and flexibility. This makes them ideal for the most demanding applications, such as those in the aerospace industry.
What are the features of Inconel 600 Flanges?
Inconel 600 Flanges feature high-temperature resistance, corrosion protection, and good mechanical properties. These qualities make them ideal for use in corrosive environments such as seawater or steam services with temperatures up to 1600°F (871°C). In addition, these flanges have the added benefit of improved weldability over standard carbon stainless steel flanges.
What are the advantages of Inconel 600 Flanges?
The advantages of Inconel 600 Flanges include increased resistance to stress corrosion cracking, oxidation, and pitting and superior creep resistance even under extreme temperature fluctuations. Furthermore, their good flexibility prevents them from becoming brittle over time. This helps to ensure the long-term reliability of systems that use these flanges.
What are the applications of Inconel 600 Flanges?
In terms of applications, Inconel 600 Flanges are primarily used in chemical processing and petrochemical plants, power generation facilities, food processing plants, water treatment systems, and paper mills. They’re also ideal for offshore oil rigs due to their excellent corrosion protection and mechanical properties at high temperatures. Additionally, they have been approved by ASME B16.5
Inconel 600 Flanges Specification
- Standards: ASTM B564 / ASME SB564
- Dimensions: ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
- Size: 1/2" (15 NB) to 48" (1200NB)
- Class: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
- Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
- Flange Face Types: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
- Specialized manufacturer of: Rtj Flanges, Pn16 Flanges, DIN 2566 pn16, DIN 2566 en 1092 1, DIN 2566 pn10, Lap Joint Flanges, Loose Flange, Orifice Flange, AS 4087 Water Flanges, Weld Neck Flanges, Flanges, Slip-On Flanges, Socketweld Flange, Plate Flanges, Large Diameter Flanges, Sorf Flange, Blind Flanges, Table Flange
Equivalent Material of Inconel 600 Flanges
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
Specialized in Inconel 600 Flanges
- 600 Inconel SOFF Flanges
- Inconel 600 ASME B16.36 Orifice Flange
- 600 Inconel Flanges Manufacturer
- Inconel 600 SORTJ Flanges
- 600 Inconel Custom Flanges
- Inconel Alloy 600 Flanges
- Inconel 600 Flanges Stockholder
- Inconel 600 Industrial Flanges
- Inconel 600 Nipoflange
- 600 Inconel Ring Type Joint Flanges
- Inconel 600 Flanges Pressure Rating
- Inconel 600 WNRF Flanges
- Inconel 600 Slip On Flat Face Flange Stocks
- Inconel 600 Flanges at Best Price In India
- Inconel 600 BSP Threaded Flanges
- Inconel 600 Reducing Flange
- Inconel 600 Spectacle Blind Flanges
- Inconel 600 Tongue and Groove Flanges in India
- Inconel 600 Flanges Stockist in Mumbai
- Inconel 600 RTJ Flanges Supplier
- Inconel 600 NPT Threaded Flanges
- Nickel UNS N06600 Flanges
- Nickel Alloy 600 Flange
- Inconel 2.4816 Flanges
- 600 Inconel Flangeolet
- Inconel 600 Slip On Plate Flange
- Inconel UNS N06600 Flange
- Inconel 600 WNFF Flanges
- Inconel 600 Large Tongue Flange
- Inconel 600 Flanges Wholesale in Mumbai
- Inconel 600 Spacer Ring Flanges
- 600 Inconel SWFF Flanges
- Inconel 600 Paddle Blind Flange
- ASTM B564 600 Inconel Forged Flange
- Inconel 600 SORF Flanges
- Inconel 600 Paddle Blank and Spacer
- 600 Inconel SWRF Flanges
- Alloy 600 Threaded Flanges Exporters
- Inconel 600 Flanges Supplier in India
- Inconel 600 Screwed Flanges
- 600 Inconel Threaded Flanges
- 600 Inconel Flat Face Blind Flange
- Inconel 600 Large Diameter Flange
- Inconel 600 BLFF Flanges
- 600 Inconel Flanges Stockist In India
- ASME SB564 600 Inconel Pipe Flanges
- Inconel 600 Orifice Flanges
- Alloy 600 Pipe Flange Spacer Ring
- 600 Inconel Weld Neck Raised Face Flanges
- Inconel 600 Loose Plate Flange
Chemical Properties Of 600 Inconel Flanges
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
Inconel 600 Flanges Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
Inconel 600 Flanges Dimensions
| NPS (in.) |
600 Inconel Flange Dimensions | ||||
|---|---|---|---|---|---|
| Dia. of Flange (in.) |
No. of Bolts |
Dia. of Bolts (in.) |
Dia. of Bolt Holes (in.) |
Bolt Circle (in.) |
|
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
Inconel 600 Flanges Weight Chart
| Pipe Normal Diameter (inch) | Outer diameter Flange | Thickness Of Flange Minimum | Diameter of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diameter of Bolt Circle |
Diameter of Bolt Holes |
Number of Bolts |
Diameter of Bolts (inch) |
KG | LB | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
| 3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
| 1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
| 1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
| 1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
| 2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
| 2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
| 3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
| 3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
| 4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
| 5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
| 6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
| 8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
| 10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
| 12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
| 14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
| 16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
| 18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
| 20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
| 24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
UNS N06600 Flange Pressure Rating Chart
| ASME | Pressure Temperature Ratings For Inconel 600 Flanges | ||||||
| Temperature °F | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 |
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
| 1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| 1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
| 1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
| 1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
| 1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
600 Inconel Alloy Flanges Price List
- cheap price 600 inconel Flanges
FOB Price: US$ 1.50 - 200.00 / Piece - alloy 600 flange cost
FOB Price: US$ 0.10 - 65.00 / Piece - top quality 600 inconel flanges with factory price
FOB Price: US$ 3.00 - 6.00 / Piece - inconel 600 plate flanges price per ton
FOB Price: US$ 10.00 - 14.00 / Piece - 600 inconel blrtj flange price list
FOB Price: US$ 3.50 - 20.00 / Piece - 600 inconel raised face blind flange
FOB Price: US$ 2.00 - 200.00 / Piece - uns n06600 weld neck pipe flange price
FOB Price: US$ 6.00 - 350.00 / Piece - 600 inconel socket weld raised face flanges (swrf)
FOB Price: US$ 2.50 - 170.00 / Piece - 600 inconel ansi 150lbs bsp threaded flanges
FOB Price: US$ 1.00 - 200.00 / Piece - astm b564 600 inconel flanges
FOB Price: US$ 4.00 - 5.00 / Piece - asme b16.5 600 inconel alloy rf flange
FOB Price: US$ 6.00 - 160.00 / Piece - ansi b16.5 inconel 600 screwed flanges
FOB Price: US$ 3.00 - 100.00 / Piece
