Inconel 601 Plates Supplier, Stockist

Inconel 601 Plates, Alloy 601 Plates, Inconel Alloy 601 Plates, 601 Inconel Hot Rolled Plates, 601 Inconel Plates, Inconel Alloy 601 Plates Stockist, ASTM B168 601 Inconel Plate, 601 Inconel Alloy Plate, UNS N06601 Plate, Inconel 601 Plates Supplier in Mumbai, India.

Inconel is a remarkable family of superalloys with exceptional strength and durability, making it an ideal material for applications requiring high resistance to extreme temperature and pressure. One of the standout alloys in this family is Inconel 601, renowned for its outstanding mechanical properties even when exposed to the harshest of high-temperature conditions. It is no wonder that Inconel 601 plate suppliers choose this alloy to provide their customers with the highest quality and most reliable products. The Alloy 601 Plate is known for its excellent heat and corrosion resistance, with exceptional oxidation performance at temperatures up to 1200°C.

Table of Content

  • What is Inconel 601 Plate?
  • Inconel Alloy 601 Plate Grades and Specification
  • Equivalent Material of Inconel 601 Plates
  • Different Types of 601 Inconel Plates
  • Specialized in Inconel 601 Plates
  • Chemical Properties Of 601 Inconel Plate
  • Inconel Alloy 601 Plates Mechanical Properties
  • ASTM B168 Inconel 601 Plate Sizes Chart
  • Inconel Alloy 601 Plate Weight Chart
  • 601 Inconel Alloy Plates Price List
  • Typical Application of Inconel 601 Plate
  • Inconel 601 Plate Value Added Services
  • Export Destinations For Inconel 601 Plates

Inconel 601 Plate Supplier, 601 Inconel Plate Price, 2.4851 Plates, Nickel Alloy 601 Plates, Inconel® Alloy 601 Plate, Inconel 601 Plate Manufacturers, ASME SB168 601 Inconel Alloy Plate, Inconel Alloy 601 CR Plates, Inconel 601 Plates Stockist in India.

What are Inconel 601 Plates?

Inconel 601 Plates are nickel-chromium alloy plates used in various industrial applications. They are primarily composed of an alloy of nickel, chromium, and iron and offer excellent corrosion resistance, oxidation resistance, good strength at high temperatures, and resistance to carburization.

What are the features of Inconel 601 Plates?

The features of Inconel 601 Plates include excellent oxidation and carburization resistance, good resistance to sulfidation even at elevated temperatures, solid mechanical properties that retain strength up to 2000°F (1093°C), incredible creep rupture strength even at extreme temperatures, and outstanding thermal stability. Additionally, Inconel 601 Plates have superior weldability compared to other alloys with similar mixtures of metals.

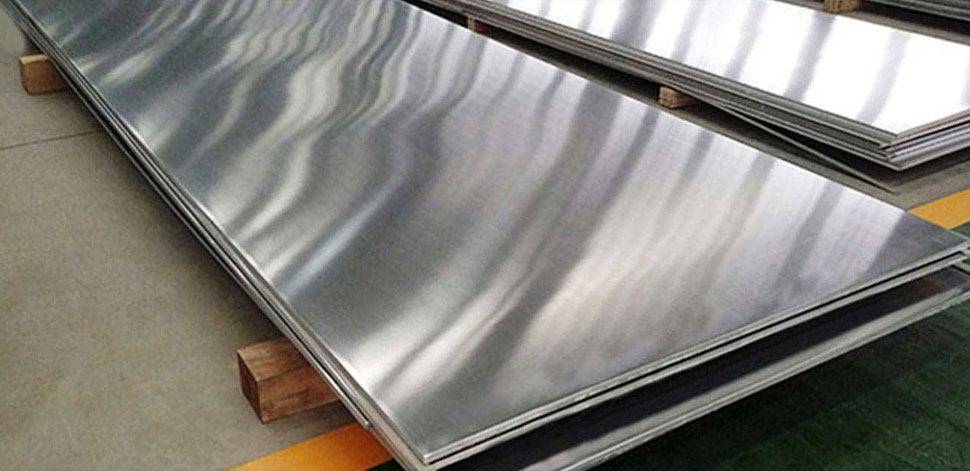

Inconel 601 Plates

What are the advantages of Inconel 601 Plates?

The advantages of Inconel 601 Plates include excellent corrosion resistance to chemical compounds and gases, good strength even at high temperatures, and resistance to carburization. Moreover, the plates have a tremendous ambient temperature strength, making them ideal for use in various industrial settings.

What are the applications of Inconel 601 Plates?

Inconel 601 Plates can be used in various applications such as furnace muffles, heat exchangers, pollution control equipment, gas turbine components, and nuclear fuel pellet cladding. The plates are also used in petrochemical industries due to their corrosion resistance against acetic, phosphoric, and sulfuric acids. Furthermore, they are used in construction projects, from bridges to skyscrapers, because of their superior mechanical properties and strength under extreme conditions. In addition, they are used in aircraft parts due to their strong thermal stability and resistance to stress cracking. Inconel 601 Plates also find use in nuclear power plants due to their excellent radiation resistance and creep rupture strength.

Pavan Metal Industries is a leading supplier and stockist of Inconel 601 Plates. Our plates come in various sizes, thicknesses, and specifications, so you can find the perfect fit for your application. They also offer superior protection against oxidation and corrosion and outstanding mechanical properties such as strength and flexibility. Let us help you find the perfect solution for your next project. Contact us today to get started.

Steel Sheet

Inconel 601 Plate Grades and Specification

  • Standard: ASTM B168 / ASME SB168
  • Dimensions: ASTM, ASME, and API
  • Plate: thickness ranges from .0125″ to 5.00″
  • Sheet: thickness range from .008″ to .0125″
  • Size: 15NB to 150NB In
  • Tempers: Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
  • Hardness: Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
  • Value added services for Plates: Waterjet cutting, Plasma cutting, Laser cutting, Bending and mechanical processing, edge preparation, welding, sawing and shearing

Equivalent Material of Inconel 601 Plates

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 601 2.4851 N06601 NCF 601 NA 49 XH60BT NC23FeA NiCr23Fe

Different Types of 601 Inconel Plates

Inconel Alloy 601 Plate
Inconel Alloy 601 Plate
Inconel 601 Cold Rolled Plate
Inconel 601 Cold Rolled Plate
Inconel 601 Hot Rolled Plate
Inconel 601 Hot Rolled Plate

Specialized in Inconel 601 Plates

  • 601 Inconel Plates Manufacturer
  • Nickel Alloy 601 Hot Rolled Plates
  • Inconel Alloy 601 Plates Supplier
  • Inconel 601 Plate in India
  • JIS NCF 601 Plates
  • Inconel 601 Plates Thickness
  • Inconel 601 Plates at Best Price List In India
  • Inconel Alloy 601 Plates in Mumbai
  • Inconel 601 Industrial Plates
  • Inconel® Alloy 601 Plates Stocks
  • Inconel 601 Plates Stockholder
  • Inconel 601 Plates Supplier in India
  • Inconel UNS N06601 Plates
  • ASTM B168 601 Inconel® Alloy Plates
  • Inconel Alloy 601 Plates Wholesale in Mumbai
  • Inconel 2.4851 Plates
  • ASME SB168 Alloy 601 Plates
  • Inconel 601 Plates Exporters
  • 601 Inconel Plates Stockist In Mumbai
  • Alloy 601 Cold Rolled Plates
  • 601 Inconel Alloy Plate Price List
  • Cut To Size Inconel 601 Plate

Chemical Properties Of 601 Inconel Plate

Grade C Mn Si S Cu Fe Ni Cr
Inconel 601 0.10 max 1.0 max 0.5 max 0.015 max 1.0 max Balance 58.0 – 63.0 21.0 – 25.0

Inconel Alloy 601 Plates Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 601 8.1 g/cm3 1411 °C (2571 °F) Psi – 80,000 , MPa – 550 Psi – 30,000 , MPa – 205 30 %

ASTM B168 Inconel 601 Plate Sizes Chart

Thickness Thickness Size Range Surface Area per Unit weight Approx Weight per Plate
inches mm   lbs/ft² kg/m² lbs kg
0.015 0.381 36 x 96 0.630 3.07566 15.12 6.84936
0.015 0.381 36 x 120 0.630 3.07566 18.90 8.5617
0.0178 0.45212 36 x 96 0.756 3.690792 18.15 8.22195
0.0178 0.45212 36 x 120 0.756 3.690792 22.68 10.27404
0.0178 0.45212 48 x 96 0.756 3.690792 24.19 10.95807
0.0178 0.45212 48 x 120 0.756 3.690792 30.24 13.69872
0.0235 0.5969 30 x 96 1.008 4.921056 20.16 9.13248
0.0235 0.5969 30 x 120 1.008 4.921056 25.20 11.4156
0.0235 0.5969 36 x 96 1.008 4.921056 24.19 10.95807
0.0235 0.5969 36 x 120 1.008 4.921056 30.24 13.69872
0.0235 0.5969 36 x 144 1.008 4.921056 36.29 16.43937
0.0235 0.5969 48 x 96 1.008 4.921056 32.26 14.61378
0.0235 0.5969 48 x 120 1.008 4.921056 40.32 18.26496
0.0235 0.5969 48 x 144 1.008 4.921056 48.39 21.92067
0.0291 0.73914 30 x 96 1.260 6.15132 25.20 11.4156
0.0291 0.73914 30 x 120 1.260 6.15132 31.50 14.2695
0.0291 0.73914 36 x 96 1.260 6.15132 30.24 13.69872
0.0291 0.73914 36 x 120 1.260 6.15132 37.80 17.1234
0.0291 0.73914 36 x 144 1.260 6.15132 45.37 20.55261
0.0291 0.73914 48 x 96 1.260 6.15132 40.32 18.26496
0.0291 0.73914 48 x 120 1.260 6.15132 50.41 22.83573
0.0291 0.73914 48 x 144 1.260 6.15132 60.49 27.40197
0.0355 0.9017 30 x 96 1.512 7.381584 30.24 13.69872
0.0355 0.9017 30 x 120 1.512 7.381584 37.80 17.1234
0.0355 0.9017 36 x 96 1.512 7.381584 36.29 16.43937

Inconel 601 Plate Weight Chart

Weight per Size Size Weight per
Plates (Kg) (mm) (mm) Plates (Kg)
12.8 2500 x 1250 x 0.5 2000 x 1000 x 1.5 24.6
8.2 2000 x 1000 x 0.5 3000 x 1500 x 1.2 44.2
17.9 2500 x 1250 x 0.7 3000 x 1500 x 1.5 55.3
13.1 2000 x 1000 x 0.8 2000 x 1000 x 2.0 32.7
11.5 2000 x 1000 x 0.7 2500 x 1250 x 1.5 38.4
14.7 2000 x 1000 x 0.9 3000 x 1500 x 2.0 73.7
20.5 2500 x 1250 x 0.8 2500 x 1250 x 2.0 51.2
33.2 3000 x 1500 x 0.9 2500 x 1250 x 2.5 63.9
36.8 3000 x 1500 x 1.0 2500 x 1250 x 3.0 77.5
23.0 2500 x 1250 x 0.9 2000 x 1000 x 2.5 40.9
25.6 2500 x 1250 x 1.0 2000 x 1000 x 3.0 49.6
16.4 2000 x 1000 x 1.0 3000 x 1500 x 2.5 92.1
19.6 2000 x 1000 x 1.2 3000 x 1500 x 3.0 112.0
30.7 2500 x 1250 x 1.2 - - - -

601 Inconel Plates Price List

  • customized inconel uns n06601 astm b168 plate for marine industry
    US $2550-1200 / Ton
  • 601 inconel metal plate
    US $1500-2400 / Ton
  • prime astm b168 uns n06601 inconel plates in stock
    US $5000-2500 / Ton
  • top quality 601 inconel plate with factory price
    US $1200-2300 / Ton
  • 601 inconel plate price
    US $1400-4300 / Ton
  • 601 inconel alloy plate price per kg
    US $30-90 / Piece
  • the most popular inconel® Alloy plate 601 manufacturer
    US $800-2500 / Ton
  • cheap price inconel alloy plate 601
    US $1500-1600 / Ton
  • cold rolled / hot rolled 601 inconel plate
    US $2300-2100 / Ton
  • inconel alloy 601 plate astm b168 asme sb168 uns n06601
    US $1800-2300 / Ton

Factory

Large power plant beside a river
Power Generation Plant

Industries We Serve

  • Chemical Industry
  • Petrochemical Industry
  • Oil & Gas Industry
  • Marine Industry
  • Power Generation Industry
  • Sugar Industry
  • Marine Industry
  • Pharmaceuticals Industry
  • Cement Industry
  • Dairy Industry
  • Food Processing Industry
  • Paper & Pulp Industry
  • Offshore and Onshore Services
Supplier of Inconel 601 Plate | Inconel 601 Plate | 601 Inconel Plate Suppliers | Inconel 601 Plate Stockists | Inconel 601 Plate Exporters | Inconel® Alloy 601 Plate Manufacturers | Inconel 601 Plate Latest Price

Inconel 601 Plate Value Added Services / Processing

  • Cladding
  • Heat Treatment
  • Annealed
  • Pickling, Polish
  • Rolling
  • Cutting
  • Bending
  • Forging
  • Minor Fabrication etc.
  • Drilling
  • Milling
  • Punching
  • Forming
  • Hot Forming
  • Welding
  • Shearing
  • Grinding
  • Testing
Plate Cutting

Export Destinations For Inconel Alloy 601 Plates

Estonia, Sri Lanka, Belgium, Italy, Malaysia, Iraq, Taiwan, Vietnam, United Arab Emirates, Portugal, Bhutan, Libya, Lahore, Hungary, Netherlands, Mexico, Zimbabwe, Gambia, Ecuador, Saudi Arabia, Ireland, Ukraine, Israel, China, Austria, Puerto Rico, Bangladesh, Japan, Romania, Kazakhstan, New Zealand, Switzerland, Kenya, United Kingdom, Spain, Bulgaria, South Korea, Lithuania, Jordan, Nigeria, Macau, South Africa, Mongolia, Gabon, Brazil, Russia, Azerbaijan, Ghana, Egypt, Canada, Iran, Poland, Morocco, Nepal, Argentina, Angola, Czech Republic, India, Thailand, Yemen, Greece, columbia, Belarus, Trinidad & Tobago, Indonesia, Lebanon, Peru, Bahrain, Costa Rica, Colombia, Slovakia, Turkey, Qatar, Namibia, Algiera, Hong Kong, Pakistan, Serbia, Oman, Bolivia, Kuwait, Norway, Algeria, Tibet, Venezuela, Philippines, Australia, France, Singapore, Tunisia, Denmark, Finland, Sweden, Germany, United States, Chile, Croatia, Afghanistan.


Domestic Supply For Inconel 601 Plates

Indore, New Delhi, Ludhiana, Haryana, Bengaluru, Gurgaon, Ahmedabad, Navi Mumbai, Bhopal, Pimpri-Chinchwad, Jaipur, Ranchi, Noida, Ernakulam , Thiruvananthapuram, Rajkot, Kolkata, Visakhapatnam, Chandigarh, Nagpur, Surat, Hyderabad, Nashik, Faridabad, Kanpur, mumbai, Thane, Secunderabad, Jamshedpur, Chennai, Pune, Howrah.
