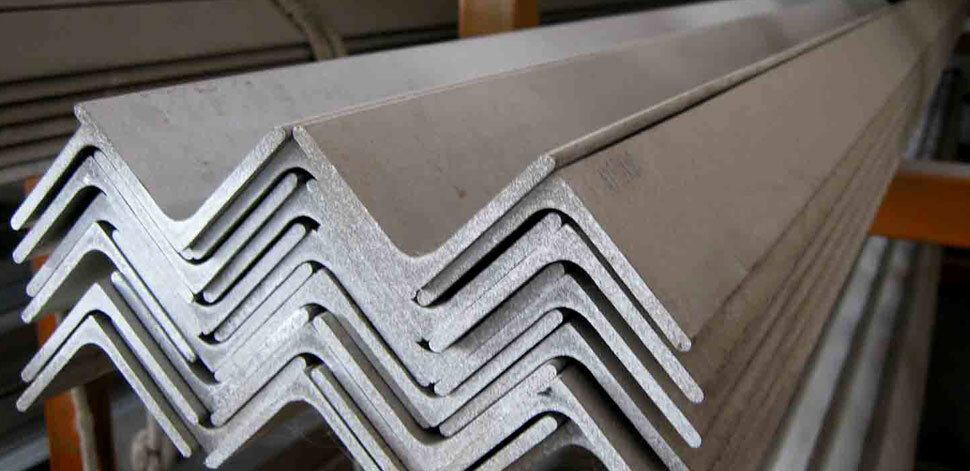

Inconel 718 Angles & Channels Supplier, Stockist
Alloy 718 Angle, Inconel Alloy 718 Channels, 718 Inconel Channel, UNS N07718 Angle, 2.4668 Angle Bars, Inconel 718 Channels, Inconel 718 Angle, Inconel 718 Angle Bar, Inconel 718 C-Channel, UNS N07718 Channels, Inconel 718 MC Channels Stockist,Inconel 718 Angles Supplier in Mumbai, India.
Inconel 718 Angles & Channels are highly reliable components with excellent features, advantages, and applications that make them valuable in many industries. Their superior oxidation and erosion resistance and low-friction nature make them an ideal choice for extreme conditions. These components' versatility makes them so attractive to various industries.
Table of Content
- What is Inconel 718 Angle Channels?
- Inconel 718 Angle & Channel Grades and Specification
- Equivalent Material of Inconel Alloy 718 Angle Channels
- Different Types of 718 Inconel Angle / Channels
- Specialized in Alloy 718 Channel Angle
- Chemical Properties Of 718 Inconel Angle Channels
- Inconel Alloy 718 Angle and Channels Mechanical Properties
- Dimensions of 718 Inconel Equal Angle
- 718 Inconel 90 Degree Angle Bracket Tolerance Chart
- Size Chart of Martensitic Inconel 718 L Shape Angle
- Dimensions Standard of 718 Inconel U Channel
- 718 Inconel Strut Channel Sizes and Schedules
- Inconel 718 Angle Channles Price List
- Typical Application of Alloy 718 Angle and Channel
- Inconel 718 Angle Channel Value Added Services
- Export Destinations For Inconel Alloy 718 Channel Angle
Inconel 718 Equal Angles, Alloy 718 Unequal Angles, Inconel Alloy 718 Angle, Inconel 718 Channel Manufacturers, 718 Inconel L Shape Angles, 718 Inconel Channel Bars, Nickel Alloy 718 Channels, Inconel 718 U Channel, 718 Inconel Channel Suppliers, Inconel 718 Angles Stockist in India.
What are Inconel 718 Angles & Channels?
Inconel 718 Angles & Channels are highly versatile and durable in applications requiring high strength and corrosion resistance. Due to their nickel-chromium alloy composition, they offer superior oxidation, erosion, and fatigue resistance. The Inconel alloy 718 Channels have many features that make them ideal for numerous industries.
What are the features of Inconel 718 Angles & Channels?
The key features of Inconel 718 Angles & Channels include excellent tensile strength at temperatures as low as -423F (-253C), good fabricability, outstanding thermal stability, and stress corrosion cracking resistance. Additionally, these components have excellent formability even when exposed to extreme environments such as cryogenic temperatures or chemical processing operations. In addition to the physical properties of Inconel 718, the alloy also has excellent thermal properties making it highly suitable for high-temperature applications.
What are the advantages of Inconel 718 Angles & Channels?
Regarding advantages, Inconel 718 Angles & Channels are dimensionally stable and have a uniform grain structure that gives them excellent strength and durability even in extreme conditions. They are easy to install and require minimal maintenance due to their non-corrosive and low-friction nature. Another advantage is that no post-weld heat treatment is needed when welding them with other metals or alloys.
What are the applications of Inconel 718 Angles & Channels?
The main application areas for these Inconel Alloy 718 Angles include aerospace, defense, nuclear power plants, chemical processing industries, marine and offshore sectors, medical equipment manufacturing, paper industry machinery, etc. The excellent durability and strength of Inconel 718 Angles & Channels make them suitable for various uses.
Inconel 718 Angles & Channels from Pavan Metal Industries are made of the finest raw materials and offer unmatched strength and durability. With high-temperature service up to 1300°F, these angles and channels provide superior resistance to corrosion, oxidation, sulfidation, and other high-temperature environments. Our Inconel 718 Angles & Channels are designed to provide optimum strength and flexibility in various application settings. Whether used in chemical, medical, or aerospace industries, these angles and channels have been rigorously tested to meet stringent industry standards.
Inconel 718 Angle & Channels Specification
- Dimensions: ASME, ASTM, EN, BS, GB, DIN, JIS, etc
- Size : Angle Size : 3/4″ THRU 8″
Channel Size : Base: 80 to 150 mm Side: 40 to 75 mm - Thickness: Angle Thickness: 1/8″ thru 5/8″
Channel Thickness : Base: 5 to 6 mm (depending on size) - Angle Length: Upto 6 Meters Long
- Processing: Bar Cutting
- Application: Paper Industry, Architucture, Construction, Kitchen Equipment, Pharma, Engineering Industries And Many More
- Angle Types: Angles, Angle Bars, Equal Angle, Unequal Angle, L Shape Angles, Equal Leg Angle, Unequal Leg Angle, T Shaped Angle
- Channel Types: Channel, Channel Bars, C-channel, U-Channel, Strut Channels, Miscellaneous Channel, MC Channels, Unistrut Channels
Equivalent Material of Inconel 718 Angle Channels
| STANDARD | WERKSTOFF NR. | UNS |
| Inconel 718 | 2.4668 | N07718 |
Specialized in Inconel 718 Angle Channels
- Alloy 718 Channels Stockholder
- Inconel 718 Unequal Leg Angles
- Inconel 718 Cold Rolled Steel Angles
- Inconel Alloy 718 Channels Stockist in Mumbai
- Alloy 718 Channels in India
- 718 Inconel Hot Rolled Steel Angle
- Inconel 718 C Shape Channels
- Inconel® Alloy 718 Angle Channels
- Inconel Alloy 718 Angles Supplier
- Inconel 718 Channels Stocks
- Inconel 718 Industrial Angle Bars
- Nickel Alloy 718 Angle Price In India
- 718 Inconel Angles Manufacturer
- Inconel 2.4668 Channel Bars
- Inconel UNS N07718 Angles
- Alloy 718 Slotted Strut Channels
- Inconel Alloy 718 Slotted U Channel
- Alloy 718 Cold Formed Channels
- Alloy 718 Hot Rolled Steel Equal Leg Angle
- Inconel 718 Angles Wholesale in Mumbai
- Inconel® Alloy 718 Slotted Angles
- Inconel 718 Miscellaneous Channels
- Inconel Alloy 718 Cold Rolled Formed Angles
- 718 Inconel Angles Stockist In India
- Inconel Alloy 718 Channels Supplier in India
- Alloy 718 U Shape Channels Exporters
- 718 Inconel Alloy Unistrut Channels
- 718 Inconel Alloy Equal Angle
Chemical Properties Of 718 Inconel Angle Channels
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015max | 0.30 max | - | 50.00 - 55.00 | 17.00 - 21.00 |
Inconel 718 Angle & Channels Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Dimensions of 718 Inconel Equal Angle
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel 718 Angle Bar (kilogram/meter) | Inconel 718 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Inconel 718 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
718 Inconel 90 Degree Angle Bracket Tolerance Chart
Leg Length = +/- 1/8"
Right Angle = +/- 2 Degrees
Straightness or Camber = 1/8" in 5 feet
Size Chart of Martensitic Inconel 718 L Shape Angle
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20' Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Dimensions Standard of 718 Inconel U Channel
| Description | Process | G kg/m | h mm | b mm | tw mm | tf mm | r1 mm | r2 mm |
|---|---|---|---|---|---|---|---|---|
| C 50X25X5X6 | Hot Rolled | 3.95 | 50 | 25 | 5 | 6 | 6 | 3 |
| C 75X40X5X7 | Hot Rolled/Laser | 6.95 | 75 | 40 | 5 | 7 | 8 | 4 |
| C 100X50X5X7.5 | Hot Rolled/Laser | 9.37 | 100 | 50 | 5 | 7.5 | 8 | 4 |
| C 125X65X6X8 | Hot Rolled/Laser | 13.4 | 125 | 65 | 6 | 8 | 8 | 4 |
| C 150X75X6.5X10 | Hot Rolled/Laser | 18.62 | 150 | 75 | 6.5 | 10 | 10 | 5 |
| C 150X75X9X12.5 | Hot Rolled/Laser | 24.01 | 150 | 75 | 9 | 12.5 | 5 | 1 |
| C 180X75X7X10.5 | Hot Rolled/Laser | 21.52 | 180 | 75 | 7 | 10 | 2 | 1 |
| C 200X80X7.5X11 | Hot Rolled/Laser | 24.77 | 200 | 80 | 7.5 | 11 | 2 | 1 |
| C 200X90X8X13.5 | Hot Rolled/Laser | 30.53 | 200 | 90 | 8 | 13.5 | 2 | 1 |
| C 230X80X8X12 | Hot Rolled/Laser | 28.56 | 230 | 80 | 8 | 12 | 2 | 1 |
| C 250X90X9X13 | Hot Rolled/Laser | 34.86 | 250 | 90 | 9 | 13 | 2 | 1 |
| C 250X90X11X14.5 | Hot Rolled/Laser | 40.34 | 250 | 90 | 11 | 14.5 | 2 | 1 |
| C 300X90X9X12 | Hot Rolled/Laser | 37.17 | 300 | 90 | 9 | 12 | 2 | 1 |
| C 300X90X10X15.5 | Hot Rolled/Laser | 43.85 | 300 | 90 | 10 | 15.5 | 2 | 1 |
| C 300X90X12X16 | Hot Rolled/Laser | 48.78 | 300 | 90 | 12 | 16 | 2 | 1 |
| C 380X100X10.5X16 | Hot Rolled/Laser | 54.85 | 380 | 100 | 10.5 | 16 | 2 | 1 |
| C 380X100X13X16.5 | Hot Rolled/Laser | 62.5 | 380 | 100 | 13 | 16.5 | 2 | 1 |
| C 380X100X13X20 | Hot Rolled/Laser | 67.37 | 380 | 100 | 13 | 20 | 2 | 1 |
718 Inconel Strut Channel Sizes and Schedules
| WEB THICK. IN IN. | FLANGE WIDTH IN IN. | WEIGHT PER FT. IN LBS. | MFG | |
|---|---|---|---|---|
| DEPTH IN IN. X WT./FT./ LBS. | WEB THICK. IN IN. | FLANGE WIDTH IN IN. | WEIGHT PER FT. IN LBS. | MFG |
| C3 x 4.1 | .170 | 1.410 | 4.1 | Hot Rolled |
| C3 x 4.1 | .170 | 1.410 | 4.1 | Hot Rolled |
| C4 x 5.4 | .184 | 1.584 | 5.4 | Hot Rolled |
| C4 x 7.25 | .321 | 1.721 | 7.25 | Hot Rolled |
| C5 x 6.7 | .190 | 1.750 | 6.7 | Hot Rolled |
| C5 x 9.0 | .325 | 1.885 | 9.0 | Hot Rolled |
| C6 x 8.2 | .200 | 1.920 | 8.2 | Hot Rolled |
| C6 x 10.5 | .314 | 2.034 | 10.5 | Hot Rolled |
| C6 x 13 | .437 | 2.157 | 13 | Laser Fused |
| C8 x 11.5 | .220 | 2.260 | 11.5 | Laser Fused |
| C8 x 13.75 | .330 | 2.343 | 13.75 | Laser Fused |
| C8 x 18.75 | .487 | 2.527 | 18.75 | Hot Rolled |
| C10 x 15.3 | .240 | 2.600 | 15.3 | Laser Fused |
| C10 x 20 | .379 | 2.739 | 20 | Laser Fused |
| C10 x 25 | .526 | 2.886 | 25 | Laser Fused |
| C10 x 30 | .673 | 3.033 | 30 | Laser Fused |
| C12 x 20.7 | .282 | 2.942 | 20.7 | Laser Fused |
| C12 x 25 | .387 | 3.047 | 25 | Laser Fused |
| C12 x 30 | .510 | 3.170 | 30 | Laser Fused |
| C15 x 33.9 | .400 | 3.400 | 33.9 | Laser Fused |
718 Inconel Angle Channles Price List
- 718 inconel equal and unequal leg angle
US$ 1,530.00-US$ 1,313.00 - hot and cold rolled inconel® alloy 718 angles
US$ 400.00-US$ 530.00 - 718 inconel cold formed angles price per kg
US$ 1,260.00-US$ 2,752.00 - 718 inconel alloy l shape angles
US$ 563.00-US$ 3,600.00 - 718 inconel alloy angle bar
US$ 2,784.00-US$ 2,245.00 - alloy 718 v angle
US$ 2,452.00-US$ 1,785.00 - 718 inconel custom c-channel
US$ 2,234.00-US$ 1,120.00 - inconel alloy 718 angle price per kg
US$ 1,741.00-US$ 1,420.00 - top quality 718 inconel angle channels with factory price
US$ 560.00-US$ 1,450.00 - cheap price 718 inconel alloy angles channels
US$ 2500-2500/ ton - alloy 718 channels price per kg
US$ 2.70-US$ 3.00/ Kilogram - inconel 718 angles price per ton
US$ 1,000.00-US$ 1,420.00 - 718 inconel angle manufacturer
US$ 2,896.00-US$ 2,400.00 - hot rolled inconel 718 channels standards
US$ 2,968.00-US$ 2,531.00
718 Inconel Channel Dealers In India | Inconel 718 Angles Exporters | 718 Inconel Channels Suppliers | Alloy 718 Angles Stockists | 718 Inconel Channel Manufacturers | Supplier of Inconel® Alloy 718 Angles | Inconel Alloy 718 Channels Latest Price| Inconel 718 Channel Angle.
Inconel 718 Angle Channels Value Added Services
- Hardness Test
- Chemical Analysis – Spectro Analysis
- Positive Material Identification – PMI Testing
- Flattening Test
- Micro and MacroTest
- Pitting Resistance Test
- Flaring Test
- Intergranular Corrosion (IGC) Test
Material Testing
- Packing List including Complete Details
- Certificate of Origin legalized
- Material Traceability Records
- Quality Assurance Plan (QAP)
- Heat Treatment Charts
- Material Test Certificates (MTC)
- Guarantee Letter
- NABL approved Laboratory Test Reports
Documentation & Packaging:
Export Destinations For Inconel 718 Angles Channels
China, Gabon, Poland, Bhutan, Zimbabwe, Taiwan, Trinidad & Tobago, Vietnam, Morocco, Mexico, Kuwait, Colombia, Saudi Arabia, Tibet, United Kingdom, Algeria, Sri Lanka, Bolivia, Australia, Israel, South Africa, Finland, Egypt, Oman, Sweden, New Zealand, Costa Rica, Angola, Gambia, Bangladesh, Portugal, Philippines, Pakistan, Lahore, Greece, Ghana, Slovakia, Nigeria, Czech Republic, Estonia, Japan, Peru, Thailand, Belarus, Algiera, Kenya, Bulgaria, columbia, Iran, Netherlands, Argentina, Malaysia, Romania, Venezuela, Ireland, Hong Kong, Italy, Qatar, India, Norway, Russia, Macau, Serbia, Hungary, Germany, Lebanon, Canada, Nepal, United Arab Emirates, Austria, Ecuador, Chile, Croatia, Switzerland, Azerbaijan, Namibia, Singapore, Turkey, Mongolia, Kazakhstan, Afghanistan, France, Ukraine, Belgium, Puerto Rico, Tunisia, Spain, Libya, Indonesia, United States, Bahrain, Iraq, Denmark, South Korea, Jordan, Brazil, Yemen, Lithuania.
Domestic Supply For Inconel 718 Angles & Channels
Chandigarh, Thane, Gurgaon, Kanpur, Noida, Thiruvananthapuram, Howrah, Secunderabad, Jaipur, Ahmedabad, Indore, Pune, Navi Mumbai, Kolkata, Faridabad, Ranchi, Nagpur, Surat, Pimpri-Chinchwad, Visakhapatnam, Hyderabad, Bengaluru, Ludhiana, Nashik, New Delhi, Bhopal, Chennai, Jamshedpur, Ernakulam, Rajkot, Haryana, mumbai.
