Inconel 718 Round Bars Supplier, Stockist

718 Inconel Round Bar, Inconel 718 Rod, Inconel 718 Round Bars, 718 Inconel Bars, ASTM B637 718 Round Bars, Inconel Alloy 718 Bars Stockist, 2.4668 Bars, Inconel Alloy 718 Round Bars, UNS N07718 Round Bars, Alloy 718 Round Bar, Inconel 718 Round Bars Supplier in Mumbai, India.

Inconel 718 Round Bars are a type of alloy steel bar that is made from a nickel-chromium-molybdenum combination. They offer exceptional strength, good corrosion resistance, and high-temperature performance. These properties make them highly sought after in the aerospace, automotive, and medical industries.

What are the advantages of Inconel 718 Round Bars?

At room temperature, Inconel 718 is known for its superior creep-rupture strength, good tensile strength, and fatigue strength. This property makes it an ideal choice for applications with high temperatures. 718 Inconel round bar also has excellent resistance to stress-corrosion cracking in chloride ion media, such as seawater, and hydrogen sulfide media, like sour gas. Combining all these properties allows Inconel 718 Round Bars to outshine any other material in its class.

Table of Content

Inconel 718 Round Bar Suppliers, Inconel 718 Bars, Inconel 718 Round Bar Manufacturers, ASME SB637 718 Inconel Bars, Inconel Alloy 718 Rectangle Bars, Nickel Alloy 718 Bars, Inconel® Alloy 718 Round Bars, Inconel Alloy 718 Square Bars, Inconel 718 Round Bars Stockist in India.

What is the tensile strength of Inconel 718 Round Bars?

Inconel 718 Round Bars are a high-strength and corrosion-resistant alloy that makes them ideal for many applications, such as aerospace and automotive industries. The tensile strength of Inconel 718 Round Bars is rated at 150 KSI (1,034 MPa). This property makes them suitable for parts that require highly reliable strength and corrosion resistance. They are also well-suited to situations where working temperatures exceed 1000°F (538°C).

What is the current price of the Inconel 718 round bar?

The current Inconel 718 round bar price in Indian currency varies depending on the size and quantity requested. Generally, prices start at around ₹1,800 per kg for basic measures but can go up to several thousand rupees per kg for larger or more specialized sizes. Prices may also vary based on market conditions and the availability of materials.

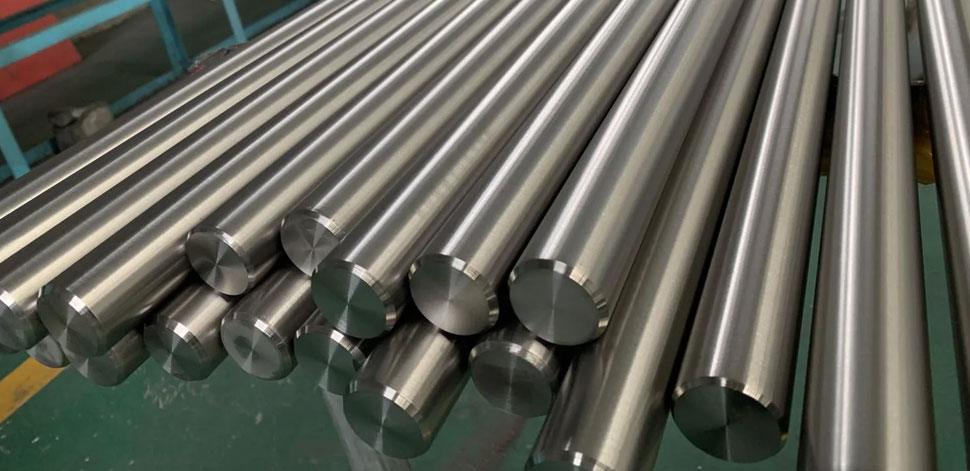

Inconel 718 Round Bars

What are the applications of Inconel 718 Round Bars?

Inconel 718 Round Bars are used in many applications such as fasteners, bolts, nuts, and aircraft turbine components. It is also used for gas-turbine power-plant components and nuclear fuel processing systems. It has become integral to traditional oil and gas production due to its excellent corrosion resistance in highly corrosive environments like sour gas wells and offshore platforms.

Inconel 718 Round Bars can be machined with standard tooling on manual or automatic equipment without hesitation due to its better machinability than stainless steel. Furthermore, it is easy to weld with high heat input alloys up to 1800°F (980°C). Overall, Inconel 718 Rods are an excellent choice for applications that require high mechanical strength and superior corrosion resistance. It is a material of choice in demanding environments such as chemical processing, marine, aerospace, and nuclear power plants. If you want to buy Inconel 718 Round Bars at the best price, look no further than us. At Pavan Metal Industries, we have the expertise and resources to provide top-notch products. Contact us today for more information.

Steel Round Bar

Inconel 718 Bars Grades and Specification

  • Standards: ASTM B637 / ASME SB637
  • Dimensions: ASTM, ASME and API
  • Round Bars Size: 10 mm To 100 mm Dia in 100 mm TO 6010 mm Length.
  • Round bar Diameter: 3-~800mm
  • Hex Bar size: 2-100mm A/F
  • Square bar size: 4 to 100mm
  • Flat bar Thickness: 2 -100mm
  • Flat bar Width: 10 to 500mm
  • Length: 3 to 6 meter, Custom Cut Lengths
  • Form: Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc.

Equivalent Material of Inconel 718 Round Bars

STANDARD WERKSTOFF NR. UNS
Inconel 718 2.4668 N07718

Different Types of 718 Inconel Bars

Inconel Alloy 718 Bars
Inconel Alloy 718 Bars
Inconel 718 Hex Bars
Inconel 718 Hex Bars
Inconel 718 Square Bars
Inconel 718 Square Bars
Inconel 718 Rectangle Bars
Inconel 718 Rectangle Bars
Inconel 718 Flat Bars
Inconel 718 Flat Bars
Inconel 718 Rods
Inconel 718 Rods

Specialized in Inconel 718 Round Bars

  • 718 Inconel Round Bar Manufacturer
  • Inconel® Alloy 718 Rods Stocks
  • Inconel 718 Bars Stockholder
  • Inconel 2.4668 Bar & Rods
  • Inconel Alloy 718 Bars Stockist in Mumbai
  • Inconel 718 Industrial Round Bars
  • Inconel 718 Cold Drown Bars
  • Inconel 718 Round Bars in India
  • Inconel Alloy 718 Round Bars Supplier
  • 718 Inconel Hot Rolled Bars
  • Inconel Alloy 718 Round Bar Price In India
  • Inconel 718 Flat Bars
  • Inconel 718 Round Bars Exporters
  • Inconel UNS N07718 Bars
  • Inconel® Alloy 718 Half Round Bars
  • Inconel 718 Precision Ground Bars
  • Inconel Alloy 718 Hexagon Bars
  • Inconel 718 Round Bars Supplier in India
  • 718 Inconel Bars Stockist In India
  • ASTM B637 718 Inconel Alloy Round Rod
  • Inconel Bars Wholesale in Mumbai
  • ASME SB637 718 Inconel Bars
  • Inconel 718 Cold Rolled Bars
  • Nickel Alloy 718 Round Bar

Chemical Properties Of 718 Inconel Round Bars

Grade C Mn Si S Cu Fe Ni Cr
Inconel 718 0.08 max 0.35 max 0.35 max 0.015 max 0.30 max – 50.00 – 55.00 17.00 – 21.00

Inconel Alloy 718 Round Bars Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 718 8.2 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 482 45 %

Inconel 718 Round Bar Weight Chart in mm, Kg, Ft

Size in mm Average Weight
KG/MTR KG/FT
10 0.62 0.18
12 0.90 0.30
14 1.20 0.40
16 1.60 0.50
18 2.00 0.60
20 2.50 0.80
22 3.00 0.90
24 3.56 1.08
25 3.90 1.20
28 4.80 1.50
30 5.55 1.69
32 6.30 1.90
34 7.14 2.18
36 8.00 2.44
40 9.90 3.00
45 12.49 3.81
50 15.40 4.70
56 19.34 5.89
60 22.20 6.80
63 24.47 7.46
63.5 24.86 7.58
65 26.05 7.94
70 30.20 9.20
73 32.86 10.00
75 34.72 10.58
78 37.51 11.43
80 39.50 12.00
83 42.47 12.95
85 44.55 13.58
90 50.00 15.20
92 52.19 15.91
93 53.39 16.27
95 55.65 16.95
100 61.66 18.79
105 67.98 20.72
110 74.60 22.74
115 81.64 24.88
125 96.34 29.36

Inconel Alloy 718 Round Bars Rolling Tolerances

Size
Ovality
Weight
 Length
up to 25 mm ± 0.5 mm 25 mm to 35 mm ± 0.6 mm 35 mm to 50 mm ± 0.8 mm 50 mm to 80 mm ± 1 mm 80 mm to 100 mm ± 1.3 mm 100 mm and above ± 1.6 % of the diameter.
± 75 % of total tolerance specified on the size.
10 mm to 16 mm ± 5 %
16 mm and above ± 3 %
For fixed length : ± 100 mm

Standard 718 Inconel Rod Sizes

Type SIZES in milimeter SIZES in inches Tolerance
Peeled and Polished 40.00 - 150.00 1.50 - 6.00 h11, h11-DIN 1013
Cold Drawn and Polish 3.00 to 75.00 1/8 to3.00 h8 to h11
Cold Drawn and Ground 10.00 to 75.00 5/6 to 2.50 h8 to h11
Peeled nd Ground 20.00 - 50.00 3/4 - 2.00 h9 to h11

Inconel Alloy Round Bars Standard lengths of 2000 mm up to 6000 mm.

5.0 45.0
6.0 50.0
7.0 55.0
8.0 60.0
9.0 65.0
10.0 70.0
12.0 75.0
16.0 80.0
20.0 90.0
25.0 100.0
30.0 130.0
35.0 160.0
40.0 200.0

Inconel Alloy 718 Round Bar Weight Chart

Diameter Weight Chart Dia Weight Chart
(mm) per metre (kg) (in) per metre (kg)
3mm 0.06 1/8" 0.06
4mm 0.10 3/16" 0.14
5mm 0.16 1/4" 0.25
6mm 0.22 5/16" 0.39
7mm 0.30 3/8" 0.56
8mm 0.40 7/16" 0.77
10mm 0.62 1/2" 1.00
12mm 0.89 9/16" 1.22
14mm 1.22 5/8" 1.56
15mm 1.40 11/16" 1.89
16mm 1.59 3/4" 2.25
18mm 2.01 7/8" 3.07
20mm 2.48 1" 4.03
22mm 3.00
24mm 3.57
25mm 3.88

718 Inconel Round Bars Dimensions Charts

Diameter or
Width
(mm)		 Weight per meter Sectional Area Perimeter
Square
(kg)		 Round
(kg)		 Square
(cm²)		 Round
(cm²)		 Square
(cm)		 Round
(cm)
5.0 0.20 0.15 0.25 0.20 2.0 1.57
5.5 0.24 0.19 0.30 0.24 2.2 1.78
6.0 0.28 0.22 0.36 0.28 2.4 1.88
7.0 0.38 0.30 0.49 0.38 2.8 2.20
8.0 0.50 0.39 0.64 0.50 3.2 2.51
9.0 0.64 0.50 0.81 0.64 3.6 2.83
10 0.73 0.63 1.00 0.79 4.0 3.14
11 0.95 0.75 1.21 0.95 4.4 3.46
12 1.13 0.89 1.44 1.13 4.8 3.77
14 1.54 1.21 1.96 1.54 5.6 4.40
16 2.01 1.58 2.56 2.01 6.4 5.03
18 2.54 2.00 3.24 2.54 7.2 5.65
20 3.14 2.47 4.00 3.14 8.0 6.28
22 3.80 2.98 4.84 3.80 8.8 6.91
25 4.91 3.85 6.25 4.91 10.0 7.85
28 6.15 4.83 7.84 6.16 11.2 8.80
32 8.04 6.31 10.24 8.04 12.8 10.05
36 10.17 7.99 12.96 10.18 14.4 11.31
40 12.56 9.86 16.00 12.57 16.0 12.57
45 15.90 12.49 20.25 15.90 18.0 14.14
50 19.62 15.41 25.00 19.64 20.0 15.71
56 24.62 19.34 31.36 24.63 22.4 17.59
63 31.16 24.47 36.69 31.17 25.2 19.79
71 39.57 31.08 50.41 39.59 28.4 22.31
80 50.24 39.46 64.00 50.27 32.0 25.13

718 Inconel Alloy Round Bars Price List

  • ASTM B637 718 inconel alloy round bar
    US$ 1,500.00-US$ 2,050.00
  • hot rolled / cold rolled inconel alloy 718 round bars
    US$ 350.00-US$ 490.00
  • 718 inconel cold drawn bars price per kg
    US$ 1,120.00-US$ 2,689.00
  • 718 inconel rod diameter 1.0mm to 300mm
    US$ 600.00-US$ 4,020.00
  • 718 inconel alloy peeled and ground bars
    US$ 2,750.00-US$ 2,900.00
  • inconel 2.4668 threaded bar price per kg
    US$ 1,500.00-US$ 2,900.00
  • top quality 718 inconel round bars with factory price
    US$ 900.00-US$ 2,700.00
  • cheap price 718 inconel round bar
    US$ 3400-4300/ ton
  • ncf 718 round bars price per kg, length 3mtr
    US$ 1.50-US$ 8.00/ Kilogram
  • inconel alloy 718 round rods price per ton
    US$ 1,000.00-US$ 1,330.00
  • 718 inconel round bars 2mm 3mm 6mm
    US$ 1,600.00-US$ 1,900.00
  • Alloy 718 Precision Ground Bars
    US$ 1,700.00-US$ 1,900.00
  • inconel 718 3mm Round Bars
    US$ 2,400.00-US$ 3,300.00
  • 5mm 12mm 718 inconel alloy round rod
    US$ 2,300.00-US$ 3,800.00
