Nickel Alloy 200 Round Bars Supplier, Stockist
200 Nickel Rods, Nickel 200 Rod, Nickel 200 Bar, UNS N02200 Round Bars, Nickel Alloy 200 Round Bars, ASTM B160 200 Nickel Round Bars, Alloy 200 Round Bar, Nickel Alloy 200 Bars Stockist, Ni Alloy 200 Bars, Nickel Alloy 200 Round Bars Supplier in Mumbai, India.
Nickel Alloy 200 round bar is an essential component in engineering and industrial applications. These Nickel 200 bars are available in cold-drawn, annealed, or polished forms and come with a range of up to 6 meters (20 feet). They're also available in special sizes according to customer specifications by Pavan Metal Industries. These Nickel 200 rods offer high mechanical strength, excellent corrosion resistance, and good electrical conductivity compared to pure nickel material.
Table of Content
- What is Nickel Alloy 200 Round Bars?
- Nickel 200 Bars Grades and Specification
- Equivalent Material of Nickel Alloy 200 Round Bar
- Different Types of Nickel Alloy 200 Round Bars
- Specialized in Nickel Alloy 200 Bars
- Chemical Properties Of Ni Alloy 200 Round Bars
- Nickel Alloy 200 Round Bars Mechanical Properties
- Nickel 200 Round Bar Weight Chart in mm, Kg, Ft
- Nickel Alloy 200 Round Bars Rolling Tolerances
- Standard Alloy 200 Round Bar Size Chart
- Nickel Alloy 200 Round Bar Weight Chart
- Nickel 200 Hot Rolled Round Bar Dimensions
- Nickel Alloy 200 Round Bars Price List
- Typical Application of Nickel 200 Round Bars
- Nickel Alloy 200 Round Bar Value Added Services
- Export Destinations For Nickel 200 Round Bar
Nickel Alloy 200 Round Rod, Ni Alloy 200 Round Bar Manufacturers, 2.4066 Bars, Alloy 200 Rectangle Bars, Nickel Alloy 200 Round Bar Suppliers, ASME SB160 200 Nickel Alloy Bars, Nickel 200 Square Bars, Nickel Alloy 200 Round Bars Stockist in India.

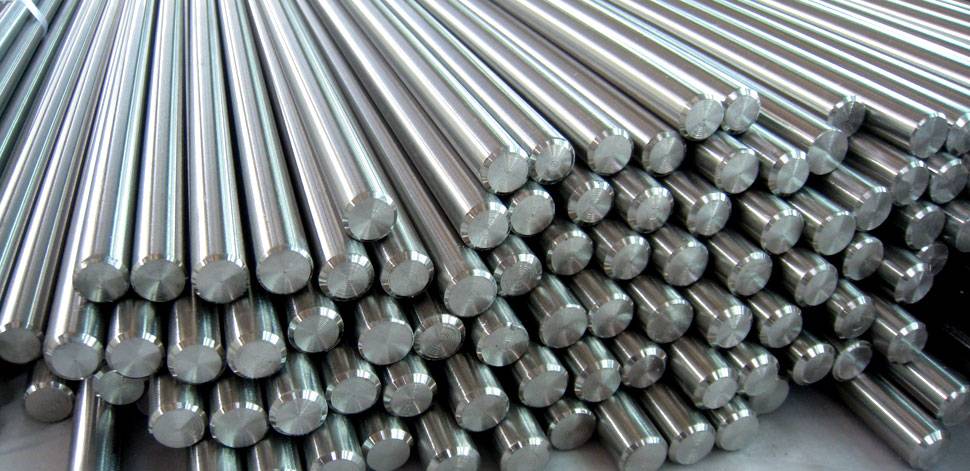

What is Nickel Alloy 200 Round Bar?
Nickel 200 Round Bars are nickel-base alloy bars with high mechanical and corrosion resistance. The alloy contains 99% nickel, which makes it highly resistant to oxidizing acids and caustic alkalis environments. These round bars are known for their excellent thermal and electrical conductivity, strength, malleability, and weldability.
What are the properties of the Nickel 200 Round bar?
The nickel 200 round bar is a nickel alloy steel used in various applications. This grade of nickel-based material is heat treatable and has superior corrosion resistance to most other nickel alloys. It also provides good mechanical properties ideal for many high-temperature and cryogenic applications. The nickel 200 round bar can also be processed using cold working techniques to allow for an even greater level of strength while still being resistant to corrosion, stress cracking, and oxidation. The nickel 200 round bar offers excellent qualities, making it the perfect alloy material for various circumstances.
What are the applications of the Nickel 200 Round Bars?
Due to their reliable performance under extreme temperatures, Nickel 200 Round Bars are often used in oil refining equipment, pipes & tubes, wire cloths & meshes, electronic components such as thermocouples & sensor elements, laboratory equipment & vessels. These Nickel Alloy 200 Round Rods also find applications in the aerospace industry. They're used to make airframes and combustors owing to their strength and excellent resistance against corrosion and oxidation.
What is the price of nickel 200?
The nickel 200 round bar prices can vary widely depending on the diameter and length. For example, nickel alloy rods up to approximately 2" in diameter generally range from 15 to 20 cents per pound, while 4" or greater rods may eclipse $2 per pound. Its cost-effective price makes it a popular choice among various industries. For general purchases, one can purchase a nickel 200 round bar in smaller quantities for less than $1 per pound. However, one can negotiate the price for larger bulk orders for additional savings.
These round bars are ideal for use in extreme temperatures or corrosive conditions. Their ability to withstand low and high temperatures enables users to use them with reliable results over a wide range of applications. At Pavan Metal Industries, we produce these round bars in various sizes, shapes, and thicknesses so our clients can get the best possible solutions for their specific requirements. Our 200 Nickel Rods are manufactured using premium-grade raw materials to ensure their durability and reliability. Whether you need them for industrial purposes or simple home repairs, Pavan Metal Industries has a large Nickel 200 Bar Stock to provide the perfect solution.
Nickel Alloy 200 Bars Grades and Specification
- Standards: ASTM B160 / ASME SB160
- Dimensions: ASTM, ASME and API
- Round Bars Size: 10 mm To 100 mm Dia in 100 mm TO 6000 mm Length.
- Round bar Diameter: 3-~800mm
- Hex Bar size: 2-100mm A/F
- Square bar size: 4 to 100mm
- Flat bar Thickness: 2 -100mm
- Flat bar Width: 10 to 500mm
- Length: 3 to 6 meter, Custom Cut Lengths
- Form: Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc.
Equivalent Material of Nickel Alloy 200 Round Bars
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel Alloy 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
Specialized in Nickel Alloy 200 Round Bars
- Nickel Alloy 200 Round Bars in India
- 200 Nickel Alloy Round Bar Manufacturer
- Nickel 200 Cold Drown Bars
- 200 Nickel Alloy Hot Rolled Bars
- Nickel 200 Bar Stock
- Nickel Alloy 200 Flat Bars
- Ni Alloy 200 Bars Stockist in Mumbai
- Nickel Alloy 2.4066 Bar & Rods
- Nickel Alloy 200 Bars Stockholder
- Ni Alloy 200 Round Bar Price In India
- Ni-200 Round Bars Supplier
- Nickel Alloy 200 Industrial Round Bars
- ASTM B160 200 Nickel Alloy Round Rod
- Nickel Alloy 200 Round Bars Supplier in India
- Nickel 200 Cold Rolled Bars
- Nickel Alloy 200 Round Bar
- Alloy 200 Round Bars Exporters
- Ni Alloy 200 Half Round Bars
- ASME SB160 Ni Alloy 200 Bars
- Ni Alloy 200 Bars Stockist In India
- 200 Nickel Alloy Hexagon Bars
- Nickel Alloy 200 Precision Ground Bars
- Ni-200 Bars Wholesale in Mumbai
- Nickel Alloy UNS N02200 Bars
Chemical Properties Of Ni Alloy 200 Round Bars
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
Nickel Alloy 200 Round Bars Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
Nickel Alloy 200 Round Bar Weight Chart in mm, Kg, Ft
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Nickel 200 Round Bars Rolling Tolerances
|
Size
|
Ovality
|
Weight
|
Length |
|
up to 25 mm ± 0.5 mm 25 mm to 35 mm ± 0.6 mm 35 mm to 50 mm
± 0.8 mm 50 mm to 80 mm ± 1 mm 80 mm to 100 mm ± 1.3 mm 100
mm and above ± 1.6 % of the diameter.
|
± 75 % of total tolerance specified on the size.
|
10 mm to 16 mm ± 5 %
16 mm and above ± 3 % |
For fixed length : ± 100 mm
|
Standard Nickel Alloy 200 Rod Sizes
| Type | SIZES in milimeter | SIZES in inches | Tolerance |
|---|---|---|---|
| Peeled and Polished | 40.00 - 150.00 | 1.50 - 6.00 | h11, h11-DIN 1013 |
| Cold Drawn and Polish | 3.00 to 75.00 | 1/8 to3.00 | h8 to h11 |
| Cold Drawn and Ground | 10.00 to 75.00 | 5/6 to 2.50 | h8 to h11 |
| Peeled nd Ground | 20.00 - 50.00 | 3/4 - 2.00 | h9 to h11 |
Nickel Alloy Round Bars Standard lengths of 2000 mm up to 6000 mm.
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Nickel Alloy 200 Round Bar Weight Chart
| Diameter | Weight Chart | Dia | Weight Chart |
|---|---|---|---|
| (mm) | per metre (kg) | (in) | per metre (kg) |
| 3mm | 0.06 | 1/8" | 0.06 |
| 4mm | 0.10 | 3/16" | 0.14 |
| 5mm | 0.16 | 1/4" | 0.25 |
| 6mm | 0.22 | 5/16" | 0.39 |
| 7mm | 0.30 | 3/8" | 0.56 |
| 8mm | 0.40 | 7/16" | 0.77 |
| 10mm | 0.62 | 1/2" | 1.00 |
| 12mm | 0.89 | 9/16" | 1.22 |
| 14mm | 1.22 | 5/8" | 1.56 |
| 15mm | 1.40 | 11/16" | 1.89 |
| 16mm | 1.59 | 3/4" | 2.25 |
| 18mm | 2.01 | 7/8" | 3.07 |
| 20mm | 2.48 | 1" | 4.03 |
| 22mm | 3.00 | ||
| 24mm | 3.57 | ||
| 25mm | 3.88 |
Nickel Alloy 200 Round Bars Dimensions Charts
| Diameter or Width (mm) |
Weight per meter | Sectional Area | Perimeter | |||
| Square (kg) |
Round (kg) |
Square (cm²) |
Round (cm²) |
Square (cm) |
Round (cm) |
|
| 5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
| 5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
| 6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
| 7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
| 8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
| 9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
| 10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
| 11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
| 12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
| 14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
| 16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
| 18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
| 20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
| 22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
| 25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
| 28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
| 32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
| 36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
| 40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
| 45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
| 50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
| 56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
| 63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
| 71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
| 80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Nickel Alloy 200 Round Bars Price List
- top quality nickel alloy 200 round bars with factory price
US$ 980.00-US$ 2,960.00 - cheap price 200 nickel alloy round bar
US$ 3200-4040/ ton - nw 2200 round bars price per kg, length 3mtr
US$ 1.00-US$ 5.50/ Kilogram - ni-200 round rods price per ton
US$ 1,100.00-US$ 1,360.00 - astm b160 200 nickel alloy round bar
US$ 1,300.00-US$ 2,050.00 - hot rolled / cold rolled nickel alloy 200 round bars
US$ 320.00-US$ 453.00 - ni alloy 200 cold drawn bars price per kg
US$ 1,020.00-US$ 2,599.00 - nickel alloy 200 rod diameter 1.0mm to 300mm
US$ 400.00-US$ 4,040.00 - 200 nickel alloy peeled and ground bars
US$ 2,650.00-US$ 2,840.00 - nickel alloy 200 round bars 2mm 3mm 6mm
US$ 1,300.00-US$ 1,840.00 - ni alloy 200 precision ground bars
US$ 1,100.00-US$ 1,440.00 - nickel alloy 200 3mm round bars
US$ 2,200.00-US$ 2,340.00 - 5mm 12mm 200 nickel alloy round rod
US$ 2,600.00-US$ 2,840.00 - nickel 2.4066 threaded bar price per kg
US$ 1,500.00-US$ 2,940.00
Nickel Alloy 200 Bars Stockists | Ni Alloy 200 Round Bar Exporters | Nickel Alloy 200 Bars Manufacturers | Nickel Alloy 200 Round Bar | Supplier of Nickel Alloy 200 Round Bars | Nickel Alloy 200 Round Bars Latest Price | Nickel Alloy 200 Bars Suppliers.
Nickel Alloy 200 Round Bars Value Added Services / Processing
- Cladding
- Heat Treatment
- Annealed
- Pickling, Polish
- Rolling
- Cutting
- Bending
- Forging
- Minor Fabrication etc.
- Drilling
- Milling
- Punching
- Forming
- Hot Forming
- Welding
- Shearing
- Grinding
- Testing
Export Destinations For Nickel Alloy 200 Round Bars
Costa Rica, Brazil, Saudi Arabia, Australia, Thailand, Serbia, Gambia, Jordan, South Africa, Canada, United States, Singapore, Romania, Tunisia, Chile, Algiera, France, columbia, Taiwan, Lebanon, Estonia, Namibia, Algeria, Kazakhstan, Germany, Iran, Pakistan, New Zealand, Russia, India, Kenya, Bahrain, United Kingdom, Macau, Czech Republic, Italy, Turkey, Switzerland, Bolivia, Libya, Spain, Ireland, Trinidad & Tobago, Afghanistan, Netherlands, Ghana, Oman, Venezuela, Vietnam, Belgium, Croatia, Bangladesh, Sweden, Lithuania, Sri Lanka, Ukraine, Qatar, Norway, Greece, Bulgaria, United Arab Emirates, Egypt, South Korea, Hong Kong, China, Lahore, Iraq, Morocco, Belarus, Hungary, Ecuador, Angola, Japan, Mexico, Gabon, Peru, Azerbaijan, Nigeria, Mongolia, Denmark, Zimbabwe, Israel, Tibet, Finland, Austria, Philippines, Colombia, Puerto Rico, Bhutan, Malaysia, Poland, Nepal, Indonesia, Kuwait, Yemen, Slovakia, Argentina, Portugal.
