SMO 254 Buttweld Fittings Supplier, Stockist
254 SMO Buttweld Pipe Fittings, 254 SMO Buttweld Fittings, Buttweld Fittings 254 SMO, SMO 254 Buttweld Fittings, SMO 254 Pipe Fittings, ASTM A403 6Mo Stainless Steel Butt weld Fittings, Alloy 254 Buttweld Fittings Stockist, SMO 254 Butt weld Fittings Supplier in Mumbai, India.
Pavan Metal Industries is a supplier of 254 SMO buttweld fittings, and we take pride in our commitment to quality products and efficient services. Our expert team is dedicated to providing excellent customer service, top-quality products, and unbeatable prices. We offer standard and customized sizes for 254 SMO buttweld fittings, manufactured to the highest quality and safety standards, to ensure our clients receive only the best. We provide competitive pricing and fast delivery times to ensure you receive your products quickly and easily.
With Pavan Metal Industries, you can trust that you are getting the best outcome to meet your needs. Contact us today to learn more about our 254 SMO Buttweld Fittings!
Table of Content
- What is SMO 254 Buttweld Fittings?
- SMO 254 Pipe Fittings Specification
- Equivalent Material of Alloy 254 Buttweld Fittings
- Different Types of 254 SMO Pipe Fittings
- Specialized in 6Mo Stainless Steel Buttweld Fittings
- Chemical Properties Of 6mo Alloy Pipe Fittings
- SS SMO 254 Buttweld Fittings Mechanical Properties
- SMO 254 Buttweld Fitttings Weight Chart
- Alloy 254 Seamless Butt Weld Pipe Fittings Tolerance Chart
- Schedule 80 SMO 254 Pipe Fittings Dimensions
- Alloy 254 Pipe Fittings Standards
- 254 SMO ASME B16.9 Fittings Pressure-Temperature Ratings
- 6Mo Stainless Steel Pipe Fittings Price List
- Typical Application of 6mo Alloy Pipe Fittings
- SS SMO 254 Buttweld Fittings Value Added Services
- Export Destinations For SMO 254 Buttweld Pipe Fittings

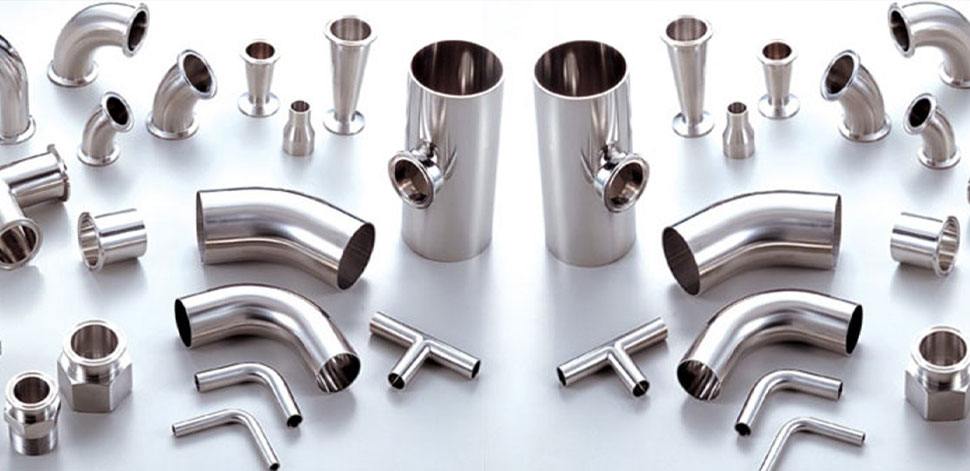

SMO 254 Pipe Elbow, 6mo Alloy Buttweld Tee, 1.4547 Pipe Fittings, SMO 254 Butt weld Pipe Fittings Manufacturers, 254 SMO Pipe Fittings Suppliers, SMO 254 Seamless Fittings, SS SMO 254 Reducers, UNS S31254 Buttweld Fittings, ASME B16.9 SMO 254 Fittings, SMO 254 Pipe Fittings Stockist in India.
These 254 SMO Fittings are highly advantageous for numerous applications across various industries. Their exceptional weldability, corrosion resistance, strength, and ductility make them versatile fitting with immense potential. Further, they can be easily shaped into various configurations to meet project requirements. Given these benefits, SMO 254 Fittings are expected to remain a critical component of industrial projects for years.
What are SMO 254 Buttweld Fittings?
254 SMO Buttweld Pipe Fittings are pipe fitting made from stainless steel, particularly grade 6Mo (6% molybdenum). It is highly resistant to corrosion, making it suitable for harsh environments. Also, it has excellent strength and toughness, making it ideal for high-temperature applications.
What are the features of SMO 254 Buttweld Fittings?
The primary features of SMO 254 Buttweld Fittings include superior welding properties due to their low carbon content and higher chromium-nickel content. It enables welders to achieve solid and reliable welds with minimal effort. Also, the fittings can be easily shaped into various configurations such as tees, elbows, reducers, caps, etc., allowing greater flexibility in design.
What are the advantages of SMO 254 Buttweld Fittings?
The advantages of alloy 254 smo buttweld fittings are non-magnetic and have superior strength and flexibility. Furthermore, they offer excellent corrosion resistance in a wide range of environments. It is also highly resistant to chloride pitting and crevice corrosion. The low carbon content ensures that it does not suffer from carbide precipitation during welding or heat treatment, thus making the welds very strong and reliable over time.
What are the applications of SMO 254 Buttweld Fittings?
SMO 254 Buttweld Fittings can be used for applications such as petrochemical processing equipment, cryogenic vessels, boilers, pressure vessels, heat exchangers, etc. Also, they are widely used in food processing plants due to their excellent resistance to chlorides and other forms of corrosion. Due to their superior strength and durability, they are used to connect piping components in the oil and gas industry.
SMO 254 Pipe Fittings Grades and Specification
- Standards: ASTM A403 / ASME SA403
- Dimensions: ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
- Size: Seamless Butt Weld Fittings : 1/2″ –
10″
Welded Butt Weld Fittings : 1/2″ – 48″ - Type: Seamless / Welded / Fabricated
- Schedule: SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
- Wall Thickness: from 2 to 40 mm
- Bending Radius: R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
- Form: 90 Elbow, 45 Elbow, Long Radius Elbow' Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, Concentric Reducer,End Cap, Dish Cap, Lap-joint Stub End
Equivalent Material of 254 SMO Buttweld Fittings
| STANDARD | WERKSTOFF NR. | UNS | SIS | AFNOR | EN |
| 254 SMO | 1.4547 | S31254 | 2378 | Z1 CNDU 20.18.06Az | X1CrNiMoCuN20-18-7 |
Specialized in 6 Mo Stainless Steel Buttweld Pipe Fittings
- SMO 254 Concentric Reducer
- SMO 254 Fittings
- Alloy 254 Fittings
- SMO 254 Pipe Fittings Stockholder
- 6mo Alloy Buttweld Fittings Manufacturer
- SS SMO 254 Buttweld Pipe Fittings Stocks
- 6Mo Stainless Steel Seamless Fittings
- SMO 254 1.4547 Welded Pipe Fittings
- Alloy 254 Buttweld Fittings
- SMO 254 Swage Nipple
- 6mo Alloy Pipe Fittings in India
- SS SMO 254 Buttweld Fittings Stockist in Mumbai
- SMO 254 Butt weld Pipe Fittings Supplier
- Alloy 254 90 Degree LR Elbow
- 254 SMO 45 Deg Short Radius Elbow
- SMO 254 Industrial Buttweld Fittings
- 6mo Alloy Eccentric Reducers
- SS SMO 254 Butt weld Reducing Cross
- SMO 254 Buttweld Elbow
- ANSI/ASME B16.28 Butt Weld Elbow SMO 254
- 6mo Alloy Buttweld Fittings at Best Price In India
- 254 SMO LR 180 Return Bends
- ASTM A403 SMO 254 Reducing Elbow
- Alloy 254 Buttweld Fittings Wholesale in Mumbai
- SMO 254 Two Halve Butt weld Fittings
- 6Mo Stainless Steel Pipe Fittings
- SMO 254 Pipe Fittings Exporters
- SMO 254 Buttweld Fittings Stockist In India
- Alloy 254 Bends
- SMO 254 Unequal Pipe Tee
- 6Mo Stainless Steel U Bend
- SS SMO 254 Short Stub Ends
- SMO 254 Pipe Nipple
- SMO 254 SR Elbow
- 254 SMO Buttweld Equal Cross
- ASME SA403 6mo Alloy Pipe Cap
- ANSI/ASME B16.9 SMO 254 Pipe Fittings Dimensions
- SS SMO 254 1D, 2D, 3D, 5D Buttweld Elbow
- SMO 254 Pipe End Cap
- 6mo Alloy Long Stub Ends
- SMO 254 180° Long Radius Elbow
- SMO 254 Buttweld Fittings Supplier in India
- 254 SMO Two Joint Pipe Fittings
- Alloy UNS S31254 Pipe Fittings
Chemical Properties Of 254 SMO Buttweld Fittings
| Grade | Ni | Cr | Mo | Cu | N | C | Mn | Si | P | S |
| SMO 254 | 17.5 - 18.5 | 19.5 - 20.5 | 6 - 6.5 | 0.5 - 1 | 0.18 - 0.22 | 0.02 max | 1 max | 0.8 max | 0.03 max | 0.01 max |
6mo Alloy Buttweld Fittings Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1320-1390 ℃ | 650 | 300 | 35 % |
SMO 254 Buttweld Fitttings Weight Chart
| ASME b16.9 Fittings Normal Pipe Size |
ANSI b16 9 Pipe Fitting O D Y |
Wall Thickness
T (Pipe Elbow Sch.) |
LR 45 Deg Elbows Centre to Face B | SR 45 Deg Elbows Weight |
LR 90 Deg Elbows Centre to Face A | LR 90 Deg Elbows Weight In Below | SR 90 Deg Elbows Centre to Face A | SR 90 Deg Elbows Weight In Below | ||
| millimeter | inch. | millimeter | millimeter | Schedule | millimeter | kilogram | millimeter | kilogram | millimeter | kilogram |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.04 | 38.1 | 0.08 | – | – |
| 3.73 | X.S | 15.9 | 0.05 | 38.1 | 0.10 | – | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.04 | 28.6 | 0.08 | – | – |
| 3.91 | X.S | 11.1 | 0.05 | 28.6 | 0.11 | – | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.09 | 38.1 | 0.15 | 25.4 | 0.11 |
| 4.55 | X.S | 22.2 | 0.11 | 38.1 | 0.19 | 25.4 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.14 | 47.6 | 0.28 | 31.75 | 0.18 |
| 4.85 | X.S | 25.4 | 0.2 | 47.6 | 0.39 | 31.75 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.2 | 57.1 | 0.4 | 38.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.25 | 57.1 | 0.5 | 38.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.36 | 76.2 | 0.72 | 50.8 | 0.5 |
| 5.54 | X.S | 34.9 | 0.5 | 76.2 | 1.0 | 50.8 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 0.73 | 95.2 | 1.46 | 63.5 | 0.95 |
| 7.01 | X.S | 44.4 | 0.91 | 95.2 | 1.82 | 63.5 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 1.1 | 114.3 | 2.18 | 76.2 | 1.45 |
| 7.62 | X.S | 50.8 | 1.45 | 114.3 | 2.86 | 76.2 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 2.1 | 152.4 | 4.2 | 101.6 | 2.8 |
| 8.56 | X.S | 63.5 | 2.9 | 152.4 | 5.7 | 101.6 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 3.4 | 190.0 | 6.8 | 127.0 | 4.8 |
| 9.5 | X.S | 79.4 | 5.0 | 190.0 | 10.0 | 127.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 5.1 | 229.0 | 10.1 | 152.4 | 6.8 |
| 10.97 | X.S | 95.2 | 7.7 | 229.0 | 15.3 | 152.4 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 10.2 | 305.0 | 20.4 | 203.0 | 13.6 |
| 12.7 | X.S | 127.0 | 15.5 | 305.0 | 30.9 | 203.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 18.1 | 381.0 | 36.1 | 254.0 | 24.1 |
| 12.7 | X.S | 159.0 | 24.4 | 381.0 | 48.8 | 254.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 26.6 | 457.0 | 53.1 | 305.0 | 35.4 |
| 12.7 | X.S | 190.0 | 35.0 | 457.0 | 70.0 | 305.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 34.1 | 533.0 | 68.1 | 356.0 | 45.4 |
| 12.7 | X.S | 222.0 | 45.0 | 533.0 | 90.0 | 356.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 45.0 | 610.0 | 89.3 | 406.0 | 59.5 |
| 12.7 | X.S | 254.0 | 59.0 | 610.0 | 118.0 | 406.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 56.5 | 686.0 | 113.0 | 457.0 | 75.6 |
| 12.7 | X.S | 286.0 | 75.0 | 686.0 | 150.0 | 457.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 85.0 | 762.0 | 140.0 | 508.0 | 93.5 |
| 12.7 | X.S | 318.0 | 112.5 | 762.0 | 186.0 | 508.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 101.5 | 914.0 | 203.0 | 610.0 | 135.0 |
| 12.7 | X.S | 381.0 | 134.5 | 914.0 | 269.0 | 610.0 | 179.0 | |||
Alloy 254 Seamless Butt Weld Pipe Fittings Tolerance Chart
| BW Fittings ANSI B16.9 Tolerance (45 And 90 degree) Elbow, End Cap, Tee, Reducer) | 90 Deg. & 45 Deg. Elbow and Tee |
Reducer & Long Lap Joint Stub End |
Cap | |||
| Fitting Dimension (NPS) | Outside Daimeter Diameter at Bevel |
Inside Diameter at End |
Wall Thick T | Center-to-End Dimension A ,C ,B |
Over-all Length H |
Over-all Length F |
| 1/2 to 2-1/2 | +0.06 | Not less than 87.5% of nominal Thickness |
+/- 0.06 | +/- 0.06 | +/- 0.12 | |
| -0.03 | ||||||
| 3 to 3-1/2 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 4 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 5 to 8 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.25 | |
| 10 to 18 | +0.16 | +/- 0.12 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.12 | ||||||
| 20 to 24 | +0.25 | +/- 0.19 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.19 | ||||||
| 26 to 30 | +0.25 | +/- 0.19 | +/- 0.12 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
| 32 to 48 | +0.25 | +/- 0.19 | +/- 0.19 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
Schedule 80 254 SMO Pipe Fittings Dimensions
| NPS (Normal Pipe Size) | O.D. (Outside Diameter) | Ave. I.D. (Inside Diameter) |
Mani. WALL |
Normal Weight |
Maxi. W.P. psi |
| 1/4" | .540 | .282 | .119 | .105 | 1130 |
| 3/8" | .675 | .403 | .126 | .146 | 920 |
| 1/2" | .840 | .526 | .147 | .213 | 850 |
| 3/4" | 1.050 | .722 | .154 | .289 | 690 |
| 1" | 1.315 | .936 | .179 | .424 | 630 |
| 1-1/4" | 1.660 | 1.255 | .191 | .586 | 520 |
| 1-1/2" | 1.900 | 1.476 | .200 | .711 | 470 |
| 2" | 2.375 | 1.913 | .218 | .984 | 400 |
| 2-1/2" | 2.875 | 2.290 | .276 | 1.500 | 420 |
| 3" | 3.500 | 2.864 | .300 | 2.010 | 370 |
| 3-1/2" | 4.000 | 3.326 | .318 | 2.452 | 350 |
| 4" | 4.500 | 3.786 | .337 | 2.938 | 320 |
| 5" | 5.563 | 4.768 | .375 | 4.078 | 290 |
| 6" | 6.625 | 5.709 | .432 | 5.610 | 280 |
| 8" | 8.625 | 7.565 | .500 | 8.522 | 250 |
| 10" | 10.750 | 9.493 | .593 | 12.635 | 230 |
| 12" | 12.750 | 11.294 | .687 | 17.384 | 230 |
| 14" | 14.000 | 12.410 | .750 | 20.852 | 220 |
| 16" | 16.000 | 14.213 | .843 | 26.810 | 220 |
| 18" | 18.000 | 16.014 | .937 | 33.544 | 220 |
| 20" | 20.000 | 17.814 | 1.031 | 41.047 | 220 |
| 24" | 24.000 | 21.418 | 1.218 | 58.233 | 210 |
SMO 254 Pipe Fittings Standards
| ASME B16.9 Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Tees, Crosses, Lap Joint Stub Ends, Caps, Reducers |
| ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| MSS SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
254 SMO ASME B16.9 Fittings Pressure-Temperature Ratings
| Pressure-Temperature ratings for ASME B16.9 Buttweld fittings (psig) | |||||
|---|---|---|---|---|---|
| Temperature Ratings | Pressure Class | ||||
| 150 | 300 | ||||
| 1/4 - 1 inch. | 1 1/4 - 2 inch. | 2 1/2 - 3 inch. | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | - | 935 | 750 | 560 |
| 450 | 232 | - | 725 | 600 | 475 |
| 500 | 260 | - | 510 | 450 | 385 |
| 550 | 288 | - | 300 | 300 | 300 |
Alloy 254 Buttweld Fittings Price List
- astm a403 ss smo 254 fittings
FOB Price: US$ 2.00 - 3.00 / Piece - smo 254 buttweld equal tee price per kg
FOB Price: US$ 6.80 - 12.00 / Piece - alloy 254 unequal pipe cross
FOB Price: US$ 2.00 - 20.00 / Piece - 254 smo buttweld reducing tee
FOB Price: US$ 4.00 - 500.00 / Piece - top quality alloy 254 buttweld fittings with factory price
FOB Price: US$ 3.00 - 6.00 / Piece - 6mo alloy butt weld fittings price per ton
FOB Price: US$ 30.00 - 45.00 / Piece - cheap price 254 smo buttweld pipe fittings
FOB Price: US$ 2.00 - 200.00 / Piece - smo 254 90 deg. pipe bend
FOB Price: US$ 6.00 - 500.00 / Piece - 6Mo Stainless Steel welded pipe fittings
FOB Price: US$ 7.00 - 350.00 / Piece - ansi b16.9 alloy 254 fittings
FOB Price: US$ 2.00 - 560.00 / Piece - alloy 1.4547 pipe fittings price per kg
FOB Price: US$ 7.00 -400.00 / Piece - 6Mo Stainless Steel seamless pipe fittings price per kg
FOB Price: US$ 0.40 - 34.00 / Piece
6mo Alloy Pipe Fittings Exporters | 6Mo Stainless Steel Buttweld Fittings Latest Price | SMO 254 Fittings Manufacturers | SMO 254 Butt weld Fittings | Supplier of Alloy 254 Pipe Fittings | 254 SMO Buttweld Pipe Fittings Suppliers | SMO 254 Seamless Pipe Fittings Stockists.
6mo Alloy Buttweld Fittings Value Added Services
- Same Day Shipping
- 24-Hour Emergency Service
- Bending
- Custom Machining Fittings
- Material testing
- Centreless Grinding
- Fabricate pipe Fittings
- Forging
- Hot Forming
- Cold Forming
- Inspection
- Marking
- Heat Treatment ( Hardening & Tempering )
- CNC Machining
- Material As Per Drawing
- Special Packaging & Shipping For Domestic And Export
- Minor Fabrication
Export Destinations For SMO 254 Pipe Fittings
Lithuania, China, Gabon, Poland, Bhutan, Zimbabwe, Taiwan, Trinidad & Tobago, Vietnam, Morocco, Mexico, Kuwait, Colombia, Saudi Arabia, Tibet, United Kingdom, Algeria, Sri Lanka, Bolivia, Australia, Israel, South Africa, Finland, Egypt, Oman, Sweden, New Zealand, Costa Rica, Angola, Gambia, Bangladesh, Romania, Venezuela, Ireland, Hong Kong, Italy, Qatar, India, Norway, Russia, Macau, Serbia, Hungary, Germany, Lebanon, Canada, Nepal, United Arab Emirates, Austria, Ecuador, Chile, Croatia, Switzerland, Azerbaijan, Portugal, Philippines, Pakistan, Lahore, Greece, Ghana, Slovakia, Nigeria, Czech Republic, Estonia, Japan, Peru, Thailand, Belarus, Algiera, Kenya, Bulgaria, columbia, Iran, Netherlands, Argentina, Malaysia, Namibia, Singapore, Turkey, Mongolia, Kazakhstan, Afghanistan, France, Ukraine, Belgium, Puerto Rico, Tunisia, Spain, Libya, Indonesia, United States, Bahrain, Iraq, Denmark, South Korea, Jordan, Brazil, Yemen.
Domestic Supply For 254 SMO Butt weld Fittings
Pimpri-Chinchwad, Bhopal, Chennai, Jamshedpur, Ernakulam, Rajkot, Haryana, mumbai, Chandigarh, Indore, Pune, Navi Mumbai, Kolkata, Faridabad, Ranchi, Nagpur, Surat, Visakhapatnam, Thane, Gurgaon, Kanpur, Noida, Thiruvananthapuram, Howrah, Secunderabad, Jaipur, Ahmedabad, Hyderabad, Bengaluru, Ludhiana, Nashik, New Delhi.
