Stainless Steel 316TI Angles & Channels Supplier, Stockist
SS 316TI Galvanized Angles, SS 316TI Cold Rolled Angle, 1.4571 Angle Bars, SS 316TI MC Channels Stockist, Stainless Steel 316TI Channels, SS 316TI Channels, UNS S31635 Angle, Stainless Steel 316TI Angle, SS 316TI Angles, Stainless Steel 316TI Angles Supplier in Mumbai, India.
SS 316Ti angles and channels offer excellent corrosion resistance and durability, making them suitable for harsh and corrosive environments, including marine and chemical processing applications. The Stainless Steel 316Ti L shape angle bar can be easily welded and fabricated using standard techniques, and they are available in various finishes, including polished, brushed, and mill finish.
Table of Content
- What is Stainless Steel 316TI Angle Channels?
- Stainless Steel 316TI Angle & Channel Grades and Specification
- Equivalent Material of Stainless Steel 316TI Angle Channels
- Different Types of 316TI Stainless Steel Angle / Channels
- Specialized in Stainless Steel 316TI Channel Angle
- Chemical Properties Of 316TI Stainless Steel Angle Channels
- SS 316TI Angle and Channels Mechanical Properties
- Dimensions of 316TI Stainless Steel Equal Angle
- 316TI Stainless Steel 90 Degree Angle Bracket Tolerance Chart
- Size Chart of Martensitic Stainless Steel 316TI L Shape Angle
- Dimensions Standard of 316TI Stainless Steel U Channel
- 316TI Stainless Steel Strut Channel Sizes and Schedules
- 316TI SS Angle Channles Price List
- Typical Application of Stainless Steel 316TI Angle and Channel
- Stainless Steel 316TI Angle Channel Value Added Services
- Export Destinations For SS 316TI Channel Angle

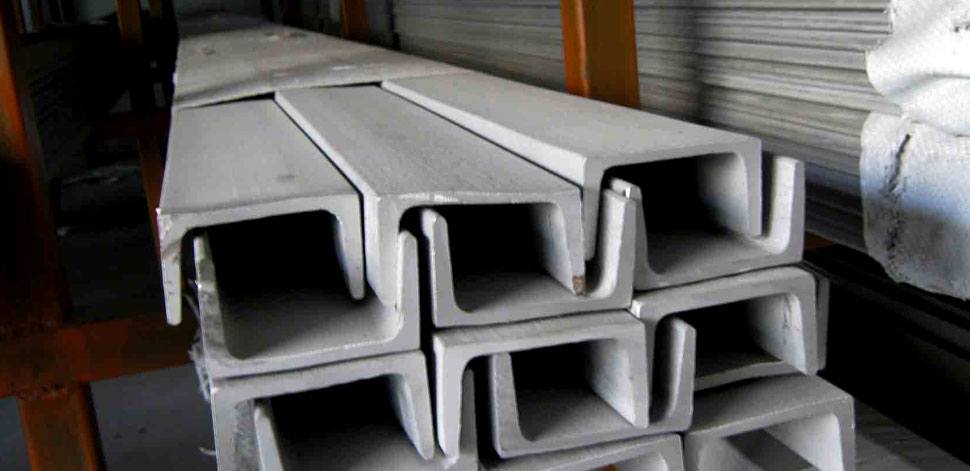

Stainless Steel 316TI L Shape Angle Bar, 316TI SS U Shaped Channel, Stainless Steel 316TI Equal Angle, SS 316TI Channels Suppliers, 316TI Stainless Steel Channel Bar, Stainless Steel C-Channels, 316TI Stainless Steel Channel Manufacturers, Stainless Steel 316TI Angles Stockist in India.
What are SS 316Ti Angles & Channels?
SS 316Ti Angles & Channels are stainless steel profiles with structural support used in various engineering and construction projects. They are made from SS 316Ti grade stainless steel, known for their superior corrosion resistance, strength, and durability compared to other grades of stainless steel.
What are the features of SS 316Ti Angles & Channels?
SS 316Ti Angles & Channels features include high tensile strength, excellent formability, weldability, bendability, non-magnetic properties, and increased temperature stability up to 1100°C. The SS 316Ti Galvanized Angles come in various standard sizes and can be customized per the requirements by bending or cutting them into desired shapes.
What are the applications of SS 316Ti Angles & Channels?
Due to their strong resistance against corrosive environments such as marine conditions, SS 316Ti Angles & Channels are widely used in marine and coastal construction projects, chemical processing units, and outdoor architectural structures. Moreover, the SS 316Ti Cold Rolled Angle is used for cryogenic applications as frigid temperatures do not affect them.
What are the advantages of SS 316Ti Angles & Channels?
SS 316Ti Angles & Channels offer advantages such as high corrosion resistance in harsh environments, increased temperature stability up to 1100°C, excellent formability, and attractive aesthetic appeal. They are widely used in engineering and construction projects and custom furniture making due to their superior properties. Thus, the 316Ti SS U shaped channel provides excellent value for money and can be customized according to the project's needs.
Apart from engineering applications, the SS 316Ti Cold Rolled Angle is also ideal for creating custom furniture like tables, chairs, cabinets, and other décor items due to their attractive silver-grey finish with a polished surface. With their superior strength and excellent formability, SS 316Ti Angles & Channels provide an exquisite look with maximum durability.
SS 316Ti Angles &Channels from Pavan Metal Industries are perfect for projects requiring superior corrosion resistance and high strength. Made of premium-grade stainless steel, these SS 316Ti angles & channels provide superior durability with long-term performance that ensures cost savings over the life cycle of a project. With exceptional workability during fabrication, installation, and maintenance, these angles & channels provide a cost-effective solution for all construction projects. Additionally, they are available in standard sizes to meet any specific requirements. So don't wait - get the SS 316Ti Angles & Channels from Pavan Metal Industries Pvt Ltd today and make your project stand out!
Stainless Steel 316TI Angle & Channels Specification
- Dimensions: ASME, ASTM, EN, BS, GB, DIN, JIS, etc
- Size : Angle Size : 3/4″ THRU 8″
Channel Size : Base: 80 to 150 mm Side: 40 to 75 mm - Thickness: Angle Thickness: 1/8″ thru 5/8″
Channel Thickness : Base: 5 to 6 mm (depending on size) - Angle Length: Upto 6 Meters Long
- Processing: Bar Cutting
- Application: Paper Industry, Architucture, Construction, Kitchen Equipment, Pharma, Engineering Industries And Many More
- Angle Types: Angles, Angle Bars, Equal Angle, Unequal Angle, L Shape Angles, Equal Leg Angle, Unequal Leg Angle, T Shaped Angle
- Channel Types: Channel, Channel Bars, C-channel, U-Channel, Strut Channels, Miscellaneous Channel, MC Channels, Unistrut Channels
Equivalent Material of Stainless Steel 316TI Angle Channels
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17-123 | X6CrNiMoTi17-12-2 |
Specialized in Stainless Steel 316TI Angle Channels
- 316TI Stainless Steel Equal Angle
- Stainless Steel 316TI Unequal Leg Angles
- Stainless Steel 316TI C Shape Channels
- 316TI Stainless Steel Angles Manufacturer
- Stainless Steel 316TI Channels in India
- SS 316TI Angle Price In India
- Stainless Steel 316TI Channels Stocks
- Stainless Steel 1.4571 Channel Bars
- 316TI Stainless Steel Hot Rolled Steel Angle
- Stainless Steel 316TI Industrial Angle Bars
- SS 316TI Angles Supplier
- Stainless Steel 316TI Cold Rolled Steel Angles
- AISI 316TI Angles
- Stainless Steel 316TI Channels Stockholder
- Austenitic Stainless Steel 316TI Angle Channels
- SS 316TI Channels Stockist in Mumbai
- Stainless Steel 316TI U Shape Channels Exporters
- 316TI SS Cold Formed Channels
- 316TI Stainless Steel Angles Stockist In India
- Stainless Steel 316TI Channels Supplier in India
- Stainless Steel UNS S31635 Angles
- Stainless Steel 316TI Angles Wholesale in Mumbai
- 316TI SS Slotted Angles
- SUS 316TI Strut Channels
- Stainless Steel 316TI Miscellaneous Channels
- Stainless Steel 316TI Slotted U Channel
- 316TI Stainless Steel Channels
- Stainless Steel 316TI Slotted Strut Channels
- 316TI Stainless Steel Unistrut Channels
- Stainless Steel 316TI Cold Rolled Formed Angles
- Stainless Steel 316TI MC Channels
- 316TI Hot Rolled Steel Equal Leg Angle
Chemical Properties Of 316TI Stainless Steel Angle Channels
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
SS 316TI Angle & Channels Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Dimensions of 316TI Stainless Steel Equal Angle
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | SS 316TI Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 316TI Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
316TI Stainless Steel 90 Degree Angle Bracket Tolerance Chart
Leg Length = +/- 1/8"
Right Angle = +/- 2 Degrees
Straightness or Camber = 1/8" in 5 feet
Size Chart of Martensitic Stainless Steel 316TI L Shape Angle
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20' Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Dimensions Standard of 316TI Stainless Steel U Channel
| Description | Process | G kg/m | h mm | b mm | tw mm | tf mm | r1 mm | r2 mm |
|---|---|---|---|---|---|---|---|---|
| C 50X25X5X6 | Hot Rolled | 3.95 | 50 | 25 | 5 | 6 | 6 | 3 |
| C 75X40X5X7 | Hot Rolled/Laser | 6.95 | 75 | 40 | 5 | 7 | 8 | 4 |
| C 100X50X5X7.5 | Hot Rolled/Laser | 9.37 | 100 | 50 | 5 | 7.5 | 8 | 4 |
| C 125X65X6X8 | Hot Rolled/Laser | 13.4 | 125 | 65 | 6 | 8 | 8 | 4 |
| C 150X75X6.5X10 | Hot Rolled/Laser | 18.62 | 150 | 75 | 6.5 | 10 | 10 | 5 |
| C 150X75X9X12.5 | Hot Rolled/Laser | 24.01 | 150 | 75 | 9 | 12.5 | 5 | 1 |
| C 180X75X7X10.5 | Hot Rolled/Laser | 21.52 | 180 | 75 | 7 | 10 | 2 | 1 |
| C 200X80X7.5X11 | Hot Rolled/Laser | 24.77 | 200 | 80 | 7.5 | 11 | 2 | 1 |
| C 200X90X8X13.5 | Hot Rolled/Laser | 30.53 | 200 | 90 | 8 | 13.5 | 2 | 1 |
| C 230X80X8X12 | Hot Rolled/Laser | 28.56 | 230 | 80 | 8 | 12 | 2 | 1 |
| C 250X90X9X13 | Hot Rolled/Laser | 34.86 | 250 | 90 | 9 | 13 | 2 | 1 |
| C 250X90X11X14.5 | Hot Rolled/Laser | 40.34 | 250 | 90 | 11 | 14.5 | 2 | 1 |
| C 300X90X9X12 | Hot Rolled/Laser | 37.17 | 300 | 90 | 9 | 12 | 2 | 1 |
| C 300X90X10X15.5 | Hot Rolled/Laser | 43.85 | 300 | 90 | 10 | 15.5 | 2 | 1 |
| C 300X90X12X16 | Hot Rolled/Laser | 48.78 | 300 | 90 | 12 | 16 | 2 | 1 |
| C 380X100X10.5X16 | Hot Rolled/Laser | 54.85 | 380 | 100 | 10.5 | 16 | 2 | 1 |
| C 380X100X13X16.5 | Hot Rolled/Laser | 62.5 | 380 | 100 | 13 | 16.5 | 2 | 1 |
| C 380X100X13X20 | Hot Rolled/Laser | 67.37 | 380 | 100 | 13 | 20 | 2 | 1 |
316TI Stainless Steel Strut Channel Sizes and Schedules
| WEB THICK. IN IN. | FLANGE WIDTH IN IN. | WEIGHT PER FT. IN LBS. | MFG | |
|---|---|---|---|---|
| DEPTH IN IN. X WT./FT./ LBS. | WEB THICK. IN IN. | FLANGE WIDTH IN IN. | WEIGHT PER FT. IN LBS. | MFG |
| C3 x 4.1 | .170 | 1.410 | 4.1 | Hot Rolled |
| C3 x 4.1 | .170 | 1.410 | 4.1 | Hot Rolled |
| C4 x 5.4 | .184 | 1.584 | 5.4 | Hot Rolled |
| C4 x 7.25 | .321 | 1.721 | 7.25 | Hot Rolled |
| C5 x 6.7 | .190 | 1.750 | 6.7 | Hot Rolled |
| C5 x 9.0 | .325 | 1.885 | 9.0 | Hot Rolled |
| C6 x 8.2 | .200 | 1.920 | 8.2 | Hot Rolled |
| C6 x 10.5 | .314 | 2.034 | 10.5 | Hot Rolled |
| C6 x 13 | .437 | 2.157 | 13 | Laser Fused |
| C8 x 11.5 | .220 | 2.260 | 11.5 | Laser Fused |
| C8 x 13.75 | .330 | 2.343 | 13.75 | Laser Fused |
| C8 x 18.75 | .487 | 2.527 | 18.75 | Hot Rolled |
| C10 x 15.3 | .240 | 2.600 | 15.3 | Laser Fused |
| C10 x 20 | .379 | 2.739 | 20 | Laser Fused |
| C10 x 25 | .526 | 2.886 | 25 | Laser Fused |
| C10 x 30 | .673 | 3.033 | 30 | Laser Fused |
| C12 x 20.7 | .282 | 2.942 | 20.7 | Laser Fused |
| C12 x 25 | .387 | 3.047 | 25 | Laser Fused |
| C12 x 30 | .510 | 3.170 | 30 | Laser Fused |
| C15 x 33.9 | .400 | 3.400 | 33.9 | Laser Fused |
316TI SS Angle Channles Price List
- 316ti stainless steel equal and unequal leg angle
US$ 2,600.00-US$ 3,500.00 - hot and cold rolled ss 316ti angles
US$ 300.00-US$ 420.00 - 316ti stainless steel cold formed angles price per kg
US$ 1,250.00-US$ 2,450.00 - 316ti stainless steel l shape angles
US$ 450.00-US$ 1,500.00 - 316ti stainless steel angle manufacturer
US$ 2,300.00-US$ 4,500.00 - hot rolled stainless steel channels standards
US$ 2,800.00-US$ 4,600.00 - 316ti stainless steel angle bar
US$ 2,700.00-US$ 4,400.00 - 316ti stainless steel v angle
US$ 2,900.00-US$ 4,400.00 - 316ti stainless steel custom c-channel
US$ 2,650.00-US$ 3,700.00 - 316ti stainless steel angle price per kg
US$ 1,800.00-US$ 2,800.00 - top quality 316ti stainless steel angle channels with factory price
US$ 600.00-US$ 1,500.00 - cheap price 316ti stainless steel angles channels
US$ 1200-3000/ ton - stainless steel 316ti channels price per kg
US$ 5.60-US$ 9.00/ Kilogram - ss 316ti angles price per ton
US$ 900.00-US$ 2,400.00
Supplier of Stainless Steel 316TI Angles | 316TI Stainless Steel Channels Suppliers | Stainless Steel 316TI Angles Stockists | SS 316TI Channels Latest Price | 316TI Stainless Steel Channel Manufacturers | Stainless Steel 316TI Channel Angle | 316TI Stainless Steel Channel Dealers In India | Stainless Steel 316TI Angles Exporters.
Stainless Steel 316TI Angle Channels Value Added Services
- Hardness Test
- Chemical Analysis – Spectro Analysis
- Positive Material Identification – PMI Testing
- Flattening Test
- Micro and MacroTest
- Pitting Resistance Test
- Flaring Test
- Intergranular Corrosion (IGC) Test
Material Testing
- Packing List including Complete Details
- Certificate of Origin legalized
- Material Traceability Records
- Quality Assurance Plan (QAP)
- Heat Treatment Charts
- Material Test Certificates (MTC)
- Guarantee Letter
- NABL approved Laboratory Test Reports
Documentation & Packaging:
Export Destinations For SS 316TI Angles Channels
Ghana, Malaysia, Hungary, Kenya, Iraq, Norway, Lithuania, Romania, Philippines, Bulgaria, Pakistan, columbia, Taiwan, Estonia, Bahrain, Japan, Azerbaijan, United Arab Emirates, New Zealand, Venezuela, India, Bhutan, Libya, Switzerland, Sweden, Kazakhstan, Brazil, Angola, Bangladesh, Egypt, Italy, Spain, Qatar, Macau, Mongolia, Puerto Rico, Morocco, Namibia, Ukraine, Greece, Austria, Lebanon, Hong Kong, Tunisia, Argentina, Nepal, Trinidad & Tobago, Afghanistan, Israel, United States, Denmark, Portugal, South Korea, Thailand, Costa Rica, Jordan, Slovakia, Lahore, Turkey, Iran, Nigeria, Kuwait, China, United Kingdom, Saudi Arabia, Sri Lanka, Germany, Zimbabwe, Belarus, Netherlands, Australia, Czech Republic, Poland, Gambia, Chile, Colombia, Tibet, Russia, Ireland, Croatia, Mexico, Canada, Algeria, Gabon, France, South Africa, Yemen, Oman, Algiera, Singapore, Ecuador, Indonesia, Finland, Serbia, Vietnam, Peru, Bolivia, Belgium.
Domestic Supply For Stainless Steel 316TI Angles & Channels
Kolkata, Noida, Chandigarh, Ludhiana, Faridabad, Bengaluru, Indore, Rajkot, Bhopal, Gurgaon, Surat, Ernakulam, Thane, Kanpur, Haryana, Ahmedabad, Nagpur, Visakhapatnam, Pune, Navi Mumbai, Secunderabad, Ranchi, Pimpri-Chinchwad, New Delhi, mumbai, Thiruvananthapuram, Hyderabad, Jamshedpur, Howrah, Nashik, Jaipur, Chennai.
