Inconel 600 Buttweld Fittings Supplier, Stockist
Alloy 600 Fittings, Inconel 600 Fittings, Inconel 600 Pipe Fittings, Inconel 600 Buttweld Fittings, Alloy 600 Butt weld Fittings, Inconel Alloy 600 Buttweld Fittings Stockist, 2.4816 Pipe Fittings, ASTM B366 600 Buttweld Fittings, Inconel 600 Buttweld Fittings Supplier in Mumbai, India.
Pavan Metal Industries is India's leading supplier of Inconel 600 Buttweld Fittings. Our buttweld fittings are manufactured using the highest quality materials, ensuring unbeatable durability and performance. The Inconel 600 alloy offers excellent corrosion and oxidation resistance, making it an ideal choice in extreme environments. Our Inconel 600 buttweld fittings are available in various sizes and shapes, making them suitable for multiple applications. With our unbeatable prices and superior quality products, customers can rest assured that they will receive the best value for their money.
Table of Content
- What is Inconel 600 Buttweld Fittings?
- Inconel 600 Pipe Fittings Specification
- Equivalent Material of Inconel 600 Buttweld Fittings
- Different Types of Inconel Alloy 600 Pipe Fittings
- Specialized in Inconel 600 Buttweld Fittings
- Chemical Properties Of Inconel 600 Pipe Fittings
- Inconel 600 Buttweld Fittings Mechanical Properties
- Inconel 600 Buttweld Fitttings Weight Chart
- Inconel 600 Seamless Butt Weld Pipe Fittings Tolerance Chart
- Sch 80 Inconel Alloy 600 Pipe Fittings Dimensions
- Inconel 600 Seamless Pipe Fittings Standards
- ASME B16.9 Inconel 600 Fittings Pressure-Temperature Ratings
- Inconel 600 Pipe Fittings Price List
- Typical Application of Inconel Alloy 600 Pipe Fittings
- Inconel 600 Buttweld Fittings Value Added Services
- Export Destinations For Inconel 600 Buttweld Pipe Fittings

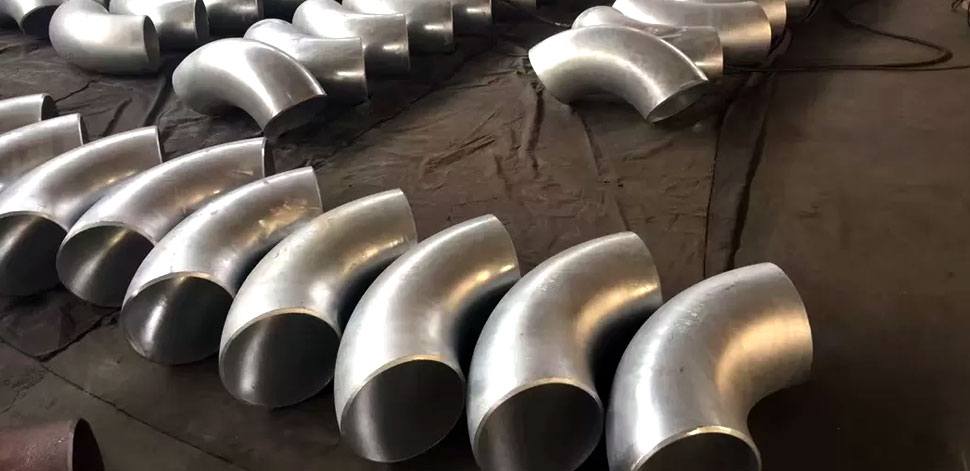

Inconel 600 Elbow ASME B16.9, Nickel Alloy 600 Pipe Fittings, Inconel® Alloy 600 Reducers, Inconel 600 Pipe Fittings Suppliers, UNS N06600 Buttweld Fittings, Inconel 600 Buttweld Tee, Inconel 600 Butt weld Pipe Fittings Manufacturers, Inconel 600 Pipe Fittings Stockist in India.
What are Inconel 600 Buttweld Fittings?
Inconel 600 Buttweld Fittings are pipe fittings used in industrial applications, especially in high-temperature and corrosive environments. These fittings are made from a nickel-chromium alloy material known as Inconel 600.
What are the features of Inconel 600 Buttweld Fittings?
The main features of Inconel 600 Buttweld Fittings include excellent corrosion resistance, high strength and durability over a wide range of temperatures, good formability, and relatively low cost compared to other alloys. Additionally, these fittings feature excellent oxidation and thermal shock-resistant properties, making them suitable for use in many industrial processes.
Due to these features, Inconel 600 Buttweld Fittings are often used in marine environments such as water systems, fuel delivery systems, and chemical processing equipment. They are also used in piping systems for power plants, petroleum refineries, and nuclear reactors. Additionally, they have been used in aircraft engines and aerospace components due to their ability to resist corrosion from high temperatures and extreme pressure.
What are the applications of Inconel 600 Buttweld Fittings?
Besides the industrial applications mentioned above, Inconel 600 Buttweld Fittings are also popular in home improvement projects such as plumbing or heating pipe fittings since they offer superior strength and durability over traditional copper-based fittings.
What are the advantages of Inconel 600 Buttweld Fittings?
Inconel 600 Buttweld Fittings offer many advantages over other alloys in industrial applications, especially those requiring excellent corrosion resistance and exceptional durability under extreme circumstances. They are also increasingly popular in home improvement projects due to their superior strength and affordability. Thanks to these benefits, the demand for Inconel 600 Buttweld Fittings is expected to grow over the coming years.
Inconel 600 Buttweld Fittings Grades and Specification
- Standards: ASTM B366 / ASME SB366
- Dimensions: ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
- Size: Seamless Butt Weld Fittings : 1/2″ –
10″
Welded Butt Weld Fittings : 1/2″ – 48″ - Type: Seamless / Welded / Fabricated
- Schedule: Sch 5 TO Sch XXS.
- Thickness: 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.
- Bending Radius: R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
- Form: 90 Elbow, 45 Elbow, Long Radius Elbow' Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, Concentric Reducer,End Cap, Dish Cap, Lap-joint Stub End
Equivalent Material of Inconel 600 Buttweld Fittings
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
Specialized in Inconel 600 Buttweld Pipe Fittings
- Nickel Alloy 600 Buttweld Fittings
- Inconel® Alloy 600 Fittings
- 600 Inconel Buttweld Fittings
- Inconel 600 Pipe Fittings Stockholder
- Inconel 600 Buttweld Fittings Manufacturer
- Inconel 600 Buttweld Pipe Fittings Stocks
- Inconel 600 Seamless Fittings
- Alloy 600 Pipe Fittings in India
- Inconel 600 Buttweld Fittings Stockist in Mumbai
- Alloy 600 Butt weld Pipe Fittings Supplier
- Inconel® Alloy 600 90 Degree LR Elbow
- Inconel 600 45 Deg Short Radius Elbow
- Inconel 600 Industrial Buttweld Fittings
- ANSI/ASME B16.28 Butt Weld Elbow Inconel 600
- Inconel 600 Buttweld Fittings at Best Price In India
- Inconel 2.4816 Welded Pipe Fittings
- Inconel® Alloy 600 Swage Nipple
- Inconel 600 LR 180 Return Bends
- Inconel 600 Concentric Reducer
- Inconel Alloy 600 Eccentric Reducers
- 600 Inconel Butt weld Reducing Cross
- Inconel UNS N06600 Pipe Fittings
- ASTM B366 600 Inconel Reducing Elbow
- Alloy 600 Buttweld Fittings Wholesale in Mumbai
- Inconel 600 180° Long Radius Elbow
- Inconel 600 Buttweld Fittings Supplier in India
- Inconel® Alloy 600 Two Joint Pipe Fittings
- Inconel 600 Two Halve Butt weld Fittings
- Inconel 600 Pipe Fittings Exporters
- ASME SB366 600 Inconel Pipe Cap
- ANSI/ASME B16.9 Alloy 600 Pipe Fittings Dimensions
- Alloy 600 1D, 2D, 3D, 5D Buttweld Elbow
- Inconel 600 Buttweld Fittings Stockist In India
- Inconel Alloy 600 Bends
- Inconel 600 Buttweld Equal Cross
- Alloy 600 Unequal Pipe Tee
- Inconel Alloy 600 U Bend
- Inconel 600 SR Elbow
- Inconel 600 Pipe End Cap
- Nickel Alloy 600 Long Stub Ends
- Inconel 600 Short Stub Ends
- Alloy 600 Pipe Nipple
Chemical Properties Of Inconel 600 Buttweld Fittings
| Element | Ni | C | Mn | Cu | S | Si | Cr | Fe |
| Inconel 600 | 72.0 min | 0.15 max | 1.0 max | 0.5 max | 0.015 max | 0.5 max | 14.0 - 17.0 | 6.0 - 10.0 |
Inconel 600 Buttweld Fittings Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness (Brinell) |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % | - |
Inconel 600 Buttweld Fitttings Weight Chart
| ASME b16.9 Fittings Normal Pipe Size |
ANSI b16 9 Pipe Fitting O D Y |
Wall Thickness
T (Pipe Elbow Sch.) |
LR 45 Deg Elbows Centre to Face B | SR 45 Deg Elbows Weight |
LR 90 Deg Elbows Centre to Face A | LR 90 Deg Elbows Weight In Below | SR 90 Deg Elbows Centre to Face A | SR 90 Deg Elbows Weight In Below | ||
| millimeter | inch. | millimeter | millimeter | Schedule | millimeter | kilogram | millimeter | kilogram | millimeter | kilogram |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.04 | 38.1 | 0.08 | – | – |
| 3.73 | X.S | 15.9 | 0.05 | 38.1 | 0.10 | – | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.04 | 28.6 | 0.08 | – | – |
| 3.91 | X.S | 11.1 | 0.05 | 28.6 | 0.11 | – | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.09 | 38.1 | 0.15 | 25.4 | 0.11 |
| 4.55 | X.S | 22.2 | 0.11 | 38.1 | 0.19 | 25.4 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.14 | 47.6 | 0.28 | 31.75 | 0.18 |
| 4.85 | X.S | 25.4 | 0.2 | 47.6 | 0.39 | 31.75 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.2 | 57.1 | 0.4 | 38.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.25 | 57.1 | 0.5 | 38.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.36 | 76.2 | 0.72 | 50.8 | 0.5 |
| 5.54 | X.S | 34.9 | 0.5 | 76.2 | 1.0 | 50.8 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 0.73 | 95.2 | 1.46 | 63.5 | 0.95 |
| 7.01 | X.S | 44.4 | 0.91 | 95.2 | 1.82 | 63.5 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 1.1 | 114.3 | 2.18 | 76.2 | 1.45 |
| 7.62 | X.S | 50.8 | 1.45 | 114.3 | 2.86 | 76.2 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 2.1 | 152.4 | 4.2 | 101.6 | 2.8 |
| 8.56 | X.S | 63.5 | 2.9 | 152.4 | 5.7 | 101.6 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 3.4 | 190.0 | 6.8 | 127.0 | 4.8 |
| 9.5 | X.S | 79.4 | 5.0 | 190.0 | 10.0 | 127.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 5.1 | 229.0 | 10.1 | 152.4 | 6.8 |
| 10.97 | X.S | 95.2 | 7.7 | 229.0 | 15.3 | 152.4 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 10.2 | 305.0 | 20.4 | 203.0 | 13.6 |
| 12.7 | X.S | 127.0 | 15.5 | 305.0 | 30.9 | 203.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 18.1 | 381.0 | 36.1 | 254.0 | 24.1 |
| 12.7 | X.S | 159.0 | 24.4 | 381.0 | 48.8 | 254.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 26.6 | 457.0 | 53.1 | 305.0 | 35.4 |
| 12.7 | X.S | 190.0 | 35.0 | 457.0 | 70.0 | 305.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 34.1 | 533.0 | 68.1 | 356.0 | 45.4 |
| 12.7 | X.S | 222.0 | 45.0 | 533.0 | 90.0 | 356.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 45.0 | 610.0 | 89.3 | 406.0 | 59.5 |
| 12.7 | X.S | 254.0 | 59.0 | 610.0 | 118.0 | 406.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 56.5 | 686.0 | 113.0 | 457.0 | 75.6 |
| 12.7 | X.S | 286.0 | 75.0 | 686.0 | 150.0 | 457.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 85.0 | 762.0 | 140.0 | 508.0 | 93.5 |
| 12.7 | X.S | 318.0 | 112.5 | 762.0 | 186.0 | 508.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 101.5 | 914.0 | 203.0 | 610.0 | 135.0 |
| 12.7 | X.S | 381.0 | 134.5 | 914.0 | 269.0 | 610.0 | 179.0 | |||
Inconel 600 Seamless Butt Weld Pipe Fittings Tolerance Chart
| BW Fittings ANSI B16.9 Tolerance (45 And 90 degree) Elbow, End Cap, Tee, Reducer) | 90 Deg. & 45 Deg. Elbow and Tee |
Reducer & Long Lap Joint Stub End |
Cap | |||
| Fitting Dimension (NPS) | Outside Daimeter Diameter at Bevel |
Inside Diameter at End |
Wall Thick T | Center-to-End Dimension A ,C ,B |
Over-all Length H |
Over-all Length F |
| 1/2 to 2-1/2 | +0.06 | Not less than 87.5% of nominal Thickness |
+/- 0.06 | +/- 0.06 | +/- 0.12 | |
| -0.03 | ||||||
| 3 to 3-1/2 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 4 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 5 to 8 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.25 | |
| 10 to 18 | +0.16 | +/- 0.12 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.12 | ||||||
| 20 to 24 | +0.25 | +/- 0.19 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.19 | ||||||
| 26 to 30 | +0.25 | +/- 0.19 | +/- 0.12 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
| 32 to 48 | +0.25 | +/- 0.19 | +/- 0.19 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
Schedule 80 Inconel 600 Pipe Fittings Dimensions
| NPS (Normal Pipe Size) | O.D. (Outside Diameter) | Ave. I.D. (Inside Diameter) |
Mani. WALL |
Normal Weight |
Maxi. W.P. psi |
| 1/4" | .540 | .282 | .119 | .105 | 1130 |
| 3/8" | .675 | .403 | .126 | .146 | 920 |
| 1/2" | .840 | .526 | .147 | .213 | 850 |
| 3/4" | 1.050 | .722 | .154 | .289 | 690 |
| 1" | 1.315 | .936 | .179 | .424 | 630 |
| 1-1/4" | 1.660 | 1.255 | .191 | .586 | 520 |
| 1-1/2" | 1.900 | 1.476 | .200 | .711 | 470 |
| 2" | 2.375 | 1.913 | .218 | .984 | 400 |
| 2-1/2" | 2.875 | 2.290 | .276 | 1.500 | 420 |
| 3" | 3.500 | 2.864 | .300 | 2.010 | 370 |
| 3-1/2" | 4.000 | 3.326 | .318 | 2.452 | 350 |
| 4" | 4.500 | 3.786 | .337 | 2.938 | 320 |
| 5" | 5.563 | 4.768 | .375 | 4.078 | 290 |
| 6" | 6.625 | 5.709 | .432 | 5.610 | 280 |
| 8" | 8.625 | 7.565 | .500 | 8.522 | 250 |
| 10" | 10.750 | 9.493 | .593 | 12.635 | 230 |
| 12" | 12.750 | 11.294 | .687 | 17.384 | 230 |
| 14" | 14.000 | 12.410 | .750 | 20.852 | 220 |
| 16" | 16.000 | 14.213 | .843 | 26.810 | 220 |
| 18" | 18.000 | 16.014 | .937 | 33.544 | 220 |
| 20" | 20.000 | 17.814 | 1.031 | 41.047 | 220 |
| 24" | 24.000 | 21.418 | 1.218 | 58.233 | 210 |
Inconel 600 Seamless Butt weld Fittings Standards
| ASME B16.9 Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Tees, Crosses, Lap Joint Stub Ends, Caps, Reducers |
| ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| MSS SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
Inconel 600 ASME B16.9 Fittings Pressure-Temperature Ratings
| Pressure-Temperature ratings for ASME B16.9 Buttweld fittings (psig) | |||||
|---|---|---|---|---|---|
| Temperature Ratings | Pressure Class | ||||
| 150 | 300 | ||||
| 1/4 - 1 inch. | 1 1/4 - 2 inch. | 2 1/2 - 3 inch. | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | - | 935 | 750 | 560 |
| 450 | 232 | - | 725 | 600 | 475 |
| 500 | 260 | - | 510 | 450 | 385 |
| 550 | 288 | - | 300 | 300 | 300 |
Inconel 600 Buttweld Fittings Price List
- top quality inconel 600 buttweld fittings with factory price
FOB Price: US$ 2.00 - 8.00 / Piece - cheap price inconel 600 buttweld pipe fittings
FOB Price: US$ 1.00 - 110.00 / Piece - inconel alloy 600 seamless pipe fittings price per kg
FOB Price: US$ 0.10 - 199.00 / Piece - inconel® alloy 600 butt weld fittings price per ton
FOB Price: US$ 15.00 - 120.00 / Piece - ASTM B366 inconel alloy 600 fittings
FOB Price: US$ 3.00 - 14.00 / Piece - inconel 600 buttweld equal tee price per kg
FOB Price: US$ 5.80 - 110.00 / Piece - inconel 600 unequal pipe cross
FOB Price: US$ 1.00 - 110.00 / Piece - alloy 600 buttweld reducing tee
FOB Price: US$ 3.00 - 110.00 / Piece - inconel alloy 600 90 deg. pipe bend
FOB Price: US$ 5.00 - 420.00 / Piece - inconel 600 welded pipe fittings
FOB Price: US$ 8.00 - 230.00 / Piece - ansi b16.9 inconel alloy 600 fittings
FOB Price: US$ 3.00 - 420.00 / Piece - alloy 600 pipe fittings price per kg
FOB Price: US$ 6.00 - 580.00 / Piece
Inconel 600 Butt weld Fittings | Inconel® Alloy 600 Buttweld Fittings Latest Price | Supplier of Inconel 600 Pipe Fittings | Inconel 600 Buttweld Pipe Fittings Suppliers | Inconel 600 Seamless Pipe Fittings Stockists | Inconel Alloy 600 Pipe Fittings Exporters | Inconel 600 Fittings Manufacturers
Inconel 600 Buttweld Fittings Value Added Services
- Same Day Shipping
- 24-Hour Emergency Service
- Bending
- Custom Machining Fittings
- Material testing
- Centreless Grinding
- Fabricate pipe Fittings
- Forging
- Hot Forming
- Cold Forming
- Inspection
- Marking
- Heat Treatment ( Hardening & Tempering )
- CNC Machining
- Material As Per Drawing
- Special Packaging & Shipping For Domestic And Export
- Minor Fabrication
Export Destinations For Inconel Alloy 600 Pipe Fittings
Portugal, Philippines, Pakistan, Lahore, Greece, Ghana, Slovakia, Nigeria, Czech Republic, Estonia, Japan, Peru, Thailand, Belarus, Algiera, Kenya, Bulgaria, columbia, Iran, Netherlands, Argentina, Malaysia, Namibia, Singapore, Turkey, Mongolia, Kazakhstan, Afghanistan, France, Ukraine, Belgium, Puerto Rico, Tunisia, Spain, Libya, Indonesia, United States, Bahrain, Iraq, Denmark, South Korea, Jordan, Brazil, Yemen, Lithuania, China, Gabon, Poland, Bhutan, Zimbabwe, Taiwan, Trinidad & Tobago, Vietnam, Morocco, Mexico, Kuwait, Colombia, Saudi Arabia, Tibet, United Kingdom, Algeria, Sri Lanka, Bolivia, Australia, Israel, South Africa, Finland, Egypt, Oman, Sweden, New Zealand, Costa Rica, Angola, Gambia, Bangladesh, Romania, Venezuela, Ireland, Hong Kong, Italy, Qatar, India, Norway, Russia, Macau, Serbia, Hungary, Germany, Lebanon, Canada, Nepal, United Arab Emirates, Austria, Ecuador, Chile, Croatia, Switzerland, Azerbaijan.
Domestic Supply For Inconel 600 Butt weld Fittings
Faridabad, Ranchi, Nagpur, Surat, Visakhapatnam, Thane, Gurgaon, Kanpur, Noida, Thiruvananthapuram, Howrah, Secunderabad, Jaipur, Ahmedabad, Hyderabad, Bengaluru, Ludhiana, Nashik, New Delhi, Pimpri-Chinchwad, Bhopal, Chennai, Jamshedpur, Ernakulam, Rajkot, Haryana, mumbai, Chandigarh, Indore, Pune, Navi Mumbai, Kolkata.
