Inconel 601 Buttweld Fittings Supplier, Stockist
Inconel 601 Pipe Fittings, Nickel Alloy 601 Pipe Fittings, ASTM B366 601 Inconel Buttweld Fittings, Inconel Alloy 601 Buttweld Fittings Stockist, Alloy 601 Butt weld Fittings, 2.4851 Pipe Fittings, Inconel 601 Buttweld Fittings, Inconel 601 Buttweld Fittings Supplier in Mumbai, India.
Pavan Metal Industries has a remarkable profile designed as a long-lasting piping component, a sustainable alternative with superior quality, and one that contributes to the expansion of a business. We are a supplier and stockist of Inconel 601 Pipe Fittings that form connections between several pipes of various sizes. Our Inconel 601 Fittings connects strongly to heat, pressure, and other extreme conditions. We provide exceptional quality at a competitive price.
Table of Content
- What is Inconel 601 Buttweld Fittings?
- Inconel 601 Pipe Fittings Specification
- Equivalent Material of Inconel 601 Buttweld Fittings
- Different Types of Inconel Alloy 601 Pipe Fittings
- Specialized in Inconel 601 Buttweld Fittings
- Chemical Properties Of Inconel 601 Pipe Fittings
- Inconel 601 Buttweld Fittings Mechanical Properties
- Inconel 601 Buttweld Fitttings Weight Chart
- Inconel 601 Seamless Butt Weld Pipe Fittings Tolerance Chart
- Sch 80 Inconel Alloy 601 Pipe Fittings Dimensions
- Inconel 601 Seamless Pipe Fittings Standards
- ASME B16.9 Inconel 601 Fittings Pressure-Temperature Ratings
- Inconel 601 Pipe Fittings Price List
- Typical Application of Inconel Alloy 601 Pipe Fittings
- Inconel 601 Buttweld Fittings Value Added Services
- Export Destinations For Inconel 601 Buttweld Pipe Fittings

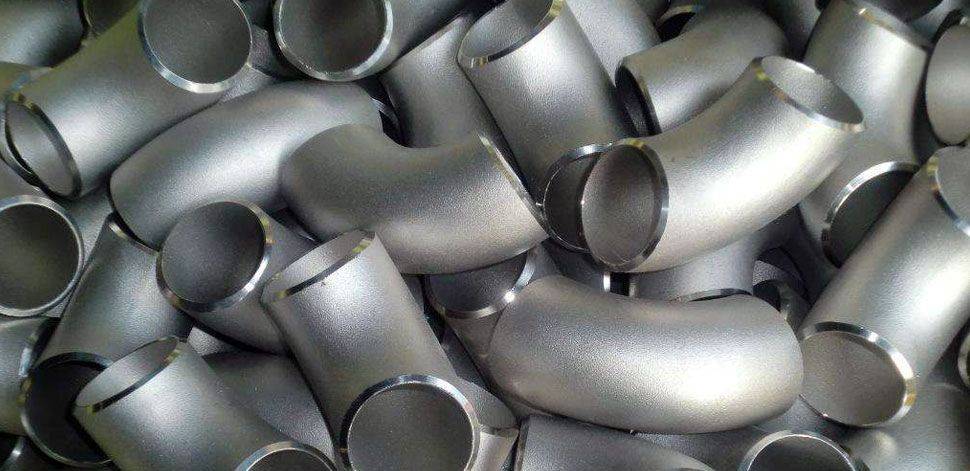

Inconel 601 Elbow ASME B16.9, Inconel 601 Fittings, UNS N06601 Buttweld Fittings, Inconel Alloy 601 Butt weld Pipe Fittings Manufacturers, Inconel® Alloy 601 Reducers, Inconel 601 Pipe Fittings Suppliers, Inconel 601 Buttweld Tee, Inconel 601 Pipe Fittings Stockist in India.
What are Inconel 601 Buttweld Fittings?
Inconel 601 Buttweld Fittings are a type of specialty piping component used for connecting pieces of pipes. These fittings are made from the Inconel 601 alloy, a nickel-chromium-iron superalloy known for its strength and corrosion resistance in high-temperature environments. It also has excellent oxidation resistance up to 2200°F (1205°C).
What are the features of Inconel 601 Buttweld Fittings?
The features of Inconel 601 Buttweld Fittings include superior strength, durability, and flexibility compared to other materials such as carbon steel or stainless steel. They can also withstand extreme temperatures and have excellent corrosion resistance against acids and other corrosive elements. Additionally, they exhibit exceptional formability and weldability due to their high nickel content.
What are the applications of Inconel 601 Buttweld Fittings?
Inconel 601 Buttweld Fittings are widely used in various industrial applications such as power generation, chemical processing, aerospace and defense, marine engineering, and oil and gas production. These fittings offer increased safety and durability due to their superior strength and corrosion resistance capabilities. In addition, they can be used with various pipes, including stainless steel, copper, aluminum alloys, and plastic piping materials.
What are the advantages of Inconel 601 Buttweld Fittings?
Overall, Inconel 601 Buttweld Fittings offer many advantages in high-temperature environments where strength and corrosion resistance matter most. Their ease of installation makes them suitable for any application requiring strong pipe connections. With the ability to withstand extreme temperatures and corrosive elements better than other materials, these fittings are the ideal choice for safety and durability.
In conclusion, Inconel 601 Buttweld Fittings are an excellent solution for any industrial application that requires robust and reliable pipe connections. With their superior strength, flexibility, and corrosion resistance capabilities, these fittings will ensure your pipes remain secure and functioning correctly in high-temperature environments. Whether it be power generation, chemical processing, aerospace and defense, marine engineering, or oil and gas production, Inconel 601 Buttweld Fittings can provide the perfect solution.
Inconel 601 Buttweld Fittings Grades and Specification
- Standards: ASTM B366 / ASME SB366
- Dimensions: ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
- Size: Seamless Butt Weld Fittings : 1/2″ –
10″
Welded Butt Weld Fittings : 1/2″ – 48″ - Type: Seamless / Welded / Fabricated
- Schedule: Sch 5 TO Sch XXS.
- Thickness: 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.
- Bending Radius: R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
- Form: 90 Elbow, 45 Elbow, Long Radius Elbow' Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, Concentric Reducer,End Cap, Dish Cap, Lap-joint Stub End
Equivalent Material of Inconel 601 Buttweld Fittings
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
Specialized in Inconel 601 Buttweld Pipe Fittings
- 601 Inconel Butt weld Reducing Cross
- Inconel 601 Seamless Fittings
- Nickel Alloy 601 Buttweld Fittings
- Inconel 601 Buttweld Pipe Fittings Stocks
- Inconel 601 Industrial Buttweld Fittings
- Inconel® Alloy 601 Fittings
- 601 Inconel Buttweld Fittings
- Inconel 601 Buttweld Fittings at Best Price In India
- Inconel 601 Buttweld Fittings Manufacturer
- Inconel 601 Pipe Fittings Stockholder
- ANSI/ASME B16.28 Butt Weld Elbow Inconel 601
- Alloy 601 Butt weld Pipe Fittings Supplier
- Inconel 601 LR 180 Return Bends
- Inconel Alloy 601 Eccentric Reducers
- Inconel 2.4851 Welded Pipe Fittings
- Inconel® Alloy 601 Swage Nipple
- Inconel 601 Concentric Reducer
- Inconel 601 45 Deg Short Radius Elbow
- Inconel® Alloy 601 90 Degree LR Elbow
- Alloy 601 Pipe Fittings in India
- Inconel 601 Buttweld Fittings Stockist in Mumbai
- Alloy 601 Buttweld Fittings Wholesale in Mumbai
- Alloy 601 Unequal Pipe Tee
- Inconel 601 Buttweld Fittings Supplier in India
- ASME SB366 601 Inconel Pipe Cap
- Inconel 601 Short Stub Ends
- Inconel 601 Buttweld Fittings Stockist In India
- Inconel 601 180° Long Radius Elbow
- Inconel 601 Buttweld Equal Cross
- Inconel Alloy 601 Bends
- Inconel 601 Two Halve Butt weld Fittings
- ANSI/ASME B16.9 Alloy 601 Pipe Fittings Dimensions
- Inconel 601 Pipe Fittings Exporters
- Inconel® Alloy 601 Two Joint Pipe Fittings
- Alloy 601 1D, 2D, 3D, 5D Buttweld Elbow
- Inconel UNS N06601 Pipe Fittings
- Inconel 601 Pipe End Cap
- Alloy 601 Pipe Nipple
- ASTM B366 601 Inconel Reducing Elbow
- Inconel Alloy 601 U Bend
- Nickel Alloy 601 Long Stub Ends
- Inconel 601 SR Elbow
Chemical Properties Of Inconel 601 Buttweld Fittings
| Grade | C | Mn | Si | Cu | S | Fe | Mo | Ni | Cr |
| Inconel 601 | 0.10 max | 1 max | 0.50 max | 1 max | 0.15 min | balance | – | 58.0-63.0 | 21.0–25.0 |
Inconel 601 Buttweld Fittings Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
Inconel 601 Buttweld Fitttings Weight Chart
| ASME b16.9 Fittings Normal Pipe Size |
ANSI b16 9 Pipe Fitting O D Y |
Wall Thickness
T (Pipe Elbow Sch.) |
LR 45 Deg Elbows Centre to Face B | SR 45 Deg Elbows Weight |
LR 90 Deg Elbows Centre to Face A | LR 90 Deg Elbows Weight In Below | SR 90 Deg Elbows Centre to Face A | SR 90 Deg Elbows Weight In Below | ||
| millimeter | inch. | millimeter | millimeter | Schedule | millimeter | kilogram | millimeter | kilogram | millimeter | kilogram |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.04 | 38.1 | 0.08 | – | – |
| 3.73 | X.S | 15.9 | 0.05 | 38.1 | 0.10 | – | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.04 | 28.6 | 0.08 | – | – |
| 3.91 | X.S | 11.1 | 0.05 | 28.6 | 0.11 | – | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.09 | 38.1 | 0.15 | 25.4 | 0.11 |
| 4.55 | X.S | 22.2 | 0.11 | 38.1 | 0.19 | 25.4 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.14 | 47.6 | 0.28 | 31.75 | 0.18 |
| 4.85 | X.S | 25.4 | 0.2 | 47.6 | 0.39 | 31.75 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.2 | 57.1 | 0.4 | 38.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.25 | 57.1 | 0.5 | 38.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.36 | 76.2 | 0.72 | 50.8 | 0.5 |
| 5.54 | X.S | 34.9 | 0.5 | 76.2 | 1.0 | 50.8 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 0.73 | 95.2 | 1.46 | 63.5 | 0.95 |
| 7.01 | X.S | 44.4 | 0.91 | 95.2 | 1.82 | 63.5 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 1.1 | 114.3 | 2.18 | 76.2 | 1.45 |
| 7.62 | X.S | 50.8 | 1.45 | 114.3 | 2.86 | 76.2 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 2.1 | 152.4 | 4.2 | 101.6 | 2.8 |
| 8.56 | X.S | 63.5 | 2.9 | 152.4 | 5.7 | 101.6 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 3.4 | 190.0 | 6.8 | 127.0 | 4.8 |
| 9.5 | X.S | 79.4 | 5.0 | 190.0 | 10.0 | 127.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 5.1 | 229.0 | 10.1 | 152.4 | 6.8 |
| 10.97 | X.S | 95.2 | 7.7 | 229.0 | 15.3 | 152.4 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 10.2 | 305.0 | 20.4 | 203.0 | 13.6 |
| 12.7 | X.S | 127.0 | 15.5 | 305.0 | 30.9 | 203.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 18.1 | 381.0 | 36.1 | 254.0 | 24.1 |
| 12.7 | X.S | 159.0 | 24.4 | 381.0 | 48.8 | 254.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 26.6 | 457.0 | 53.1 | 305.0 | 35.4 |
| 12.7 | X.S | 190.0 | 35.0 | 457.0 | 70.0 | 305.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 34.1 | 533.0 | 68.1 | 356.0 | 45.4 |
| 12.7 | X.S | 222.0 | 45.0 | 533.0 | 90.0 | 356.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 45.0 | 610.0 | 89.3 | 406.0 | 59.5 |
| 12.7 | X.S | 254.0 | 59.0 | 610.0 | 118.0 | 406.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 56.5 | 686.0 | 113.0 | 457.0 | 75.6 |
| 12.7 | X.S | 286.0 | 75.0 | 686.0 | 150.0 | 457.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 85.0 | 762.0 | 140.0 | 508.0 | 93.5 |
| 12.7 | X.S | 318.0 | 112.5 | 762.0 | 186.0 | 508.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 101.5 | 914.0 | 203.0 | 610.0 | 135.0 |
| 12.7 | X.S | 381.0 | 134.5 | 914.0 | 269.0 | 610.0 | 179.0 | |||
Inconel 601 Seamless Butt Weld Pipe Fittings Tolerance Chart
| BW Fittings ANSI B16.9 Tolerance (45 And 90 degree) Elbow, End Cap, Tee, Reducer) | 90 Deg. & 45 Deg. Elbow and Tee |
Reducer & Long Lap Joint Stub End |
Cap | |||
| Fitting Dimension (NPS) | Outside Daimeter Diameter at Bevel |
Inside Diameter at End |
Wall Thick T | Center-to-End Dimension A ,C ,B |
Over-all Length H |
Over-all Length F |
| 1/2 to 2-1/2 | +0.06 | Not less than 87.5% of nominal Thickness |
+/- 0.06 | +/- 0.06 | +/- 0.12 | |
| -0.03 | ||||||
| 3 to 3-1/2 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 4 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 5 to 8 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.25 | |
| 10 to 18 | +0.16 | +/- 0.12 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.12 | ||||||
| 20 to 24 | +0.25 | +/- 0.19 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.19 | ||||||
| 26 to 30 | +0.25 | +/- 0.19 | +/- 0.12 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
| 32 to 48 | +0.25 | +/- 0.19 | +/- 0.19 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
Schedule 80 Inconel 601 Pipe Fittings Dimensions
| NPS (Normal Pipe Size) | O.D. (Outside Diameter) | Ave. I.D. (Inside Diameter) |
Mani. WALL |
Normal Weight |
Maxi. W.P. psi |
| 1/4" | .540 | .282 | .119 | .105 | 1130 |
| 3/8" | .675 | .403 | .126 | .146 | 920 |
| 1/2" | .840 | .526 | .147 | .213 | 850 |
| 3/4" | 1.050 | .722 | .154 | .289 | 690 |
| 1" | 1.315 | .936 | .179 | .424 | 630 |
| 1-1/4" | 1.660 | 1.255 | .191 | .586 | 520 |
| 1-1/2" | 1.900 | 1.476 | .200 | .711 | 470 |
| 2" | 2.375 | 1.913 | .218 | .984 | 400 |
| 2-1/2" | 2.875 | 2.290 | .276 | 1.500 | 420 |
| 3" | 3.500 | 2.864 | .300 | 2.010 | 370 |
| 3-1/2" | 4.000 | 3.326 | .318 | 2.452 | 350 |
| 4" | 4.500 | 3.786 | .337 | 2.938 | 320 |
| 5" | 5.563 | 4.768 | .375 | 4.078 | 290 |
| 6" | 6.625 | 5.709 | .432 | 5.610 | 280 |
| 8" | 8.625 | 7.565 | .500 | 8.522 | 250 |
| 10" | 10.750 | 9.493 | .593 | 12.635 | 230 |
| 12" | 12.750 | 11.294 | .687 | 17.384 | 230 |
| 14" | 14.000 | 12.410 | .750 | 20.852 | 220 |
| 16" | 16.000 | 14.213 | .843 | 26.810 | 220 |
| 18" | 18.000 | 16.014 | .937 | 33.544 | 220 |
| 20" | 20.000 | 17.814 | 1.031 | 41.047 | 220 |
| 24" | 24.000 | 21.418 | 1.218 | 58.233 | 210 |
Inconel 601 Seamless Butt weld Fittings Standards
| ASME B16.9 Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Tees, Crosses, Lap Joint Stub Ends, Caps, Reducers |
| ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| MSS SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
Inconel 601 ASME B16.9 Fittings Pressure-Temperature Ratings
| Pressure-Temperature ratings for ASME B16.9 Buttweld fittings (psig) | |||||
|---|---|---|---|---|---|
| Temperature Ratings | Pressure Class | ||||
| 150 | 300 | ||||
| 1/4 - 1 inch. | 1 1/4 - 2 inch. | 2 1/2 - 3 inch. | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | - | 935 | 750 | 560 |
| 450 | 232 | - | 725 | 600 | 475 |
| 500 | 260 | - | 510 | 450 | 385 |
| 550 | 288 | - | 300 | 300 | 300 |
Inconel 601 Buttweld Fittings Price List
- astm b366 inconel alloy 601 fittings
FOB Price: US$ 3.00 - 18.00 / Piece - inconel 601 buttweld equal tee price per kg
FOB Price: US$ 5.80 - 150.00 / Piece - inconel 601 unequal pipe cross
FOB Price: US$ 1.00 - 140.00 / Piece - alloy 601 buttweld reducing tee
FOB Price: US$ 3.00 - 180.00 / Piece - top quality inconel 601 buttweld fittings with factory price
FOB Price: US$ 2.00 - 10.00 / Piece - cheap price inconel 601 buttweld pipe fittings
FOB Price: US$ 1.00 - 120.00 / Piece - inconel alloy 601 90 deg. pipe bend
FOB Price: US$ 5.00 - 460.00 / Piece - inconel 601 welded pipe fittings
FOB Price: US$ 8.00 - 270.00 / Piece - ansi b16.9 inconel alloy 601 fittings
FOB Price: US$ 3.00 - 450.00 / Piece - alloy 601 pipe fittings price per kg
FOB Price: US$ 6.00 - 590.00 / Piece - inconel alloy 601 seamless pipe fittings price per kg
FOB Price: US$ 0.10 - 169.00 / Piece - inconel® alloy 601 butt weld fittings price per ton
FOB Price: US$ 15.00 - 140.00 / Piece
Supplier of Inconel 601 Pipe Fittings | Inconel 601 Buttweld Pipe Fittings Suppliers | Inconel 601 Seamless Pipe Fittings Stockists | Inconel Alloy 601 Pipe Fittings Exporters | Inconel 601 Fittings Manufacturers | Inconel 601 Butt weld Fittings | Inconel® Alloy 601 Buttweld Fittings Latest Price.
Inconel 601 Buttweld Fittings Value Added Services
- Same Day Shipping
- 24-Hour Emergency Service
- Bending
- Custom Machining Fittings
- Material testing
- Centreless Grinding
- Fabricate pipe Fittings
- Forging
- Hot Forming
- Cold Forming
- Inspection
- Marking
- Heat Treatment ( Hardening & Tempering )
- CNC Machining
- Material As Per Drawing
- Special Packaging & Shipping For Domestic And Export
- Minor Fabrication
Export Destinations For Inconel Alloy 601 Pipe Fittings
Namibia, Ireland, Vietnam, Switzerland, Kazakhstan, Japan, Australia, Gambia, Netherlands, Peru, Bahrain, Malaysia, Hungary, Estonia, Czech Republic, Thailand, India, Spain, Puerto Rico, Jordan, Sri Lanka, Tibet, Singapore, Pakistan, Colombia, Brazil, Kenya, Hong Kong, Venezuela, Morocco, South Africa, Belgium, Russia, Turkey, Mongolia, Denmark, Poland, Afghanistan, New Zealand, Lahore, Taiwan, Croatia, Ecuador, Austria, Germany, United Arab Emirates, Lithuania, Portugal, Norway, Nigeria, columbia, Trinidad & Tobago, Indonesia, Yemen, Oman, Bangladesh, Israel, Qatar, Egypt, Bhutan, Angola, Bulgaria, Italy, Slovakia, Iraq, Finland, Azerbaijan, Argentina, Philippines, Zimbabwe, Costa Rica, Nepal, South Korea, France, Canada, Serbia, Algiera, Mexico, Macau, Libya, Ghana, Algeria, Belarus, Kuwait, Bolivia, Ukraine, Saudi Arabia, Gabon, Iran, Tunisia, United States, Romania, China, Sweden, Chile, Greece, Lebanon, United Kingdom.
Domestic Supply For Inconel 601 Butt weld Fittings
Thiruvananthapuram, Noida, Pune, Indore, Visakhapatnam, Navi Mumbai, Nagpur, Ahmedabad, Secunderabad, Jaipur, Nashik, Kanpur, Rajkot, mumbai, Ernakulam, New Delhi, Bengaluru, Faridabad, Howrah, Jamshedpur, Chandigarh, Chennai, Thane, Gurgaon, Ludhiana, Kolkata, Bhopal, Haryana, Hyderabad, Ranchi, Pimpri-Chinchwad, Surat.
