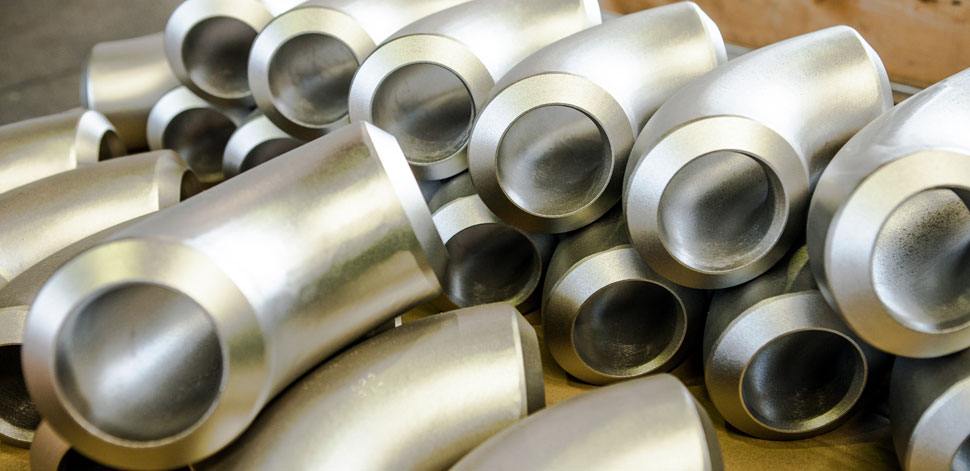

Inconel 625 Buttweld Fittings Supplier, Stockist
Nickel Alloy 625 Buttweld Fittings, Alloy 625 Butt weld Fittings, 2.4856 Pipe Fittings, Inconel 625 Pipe Fittings, Inconel 625 Buttweld Fittings, ASTM B366 625 Inconel Buttweld Fittings, Inconel Alloy 625 Buttweld Fittings Stockist, Inconel 625 Buttweld Fittings Supplier in Mumbai, India.
Inconel 625 buttweld fittings are highly durable for joining two pipes or tubes. These fittings are suitable for fabricating parts that require superior strength and corrosion resistance, making them ideal for many industrial applications. Their excellent features, advantages, and wide range of applications make them one of the most popular materials in manufacturing today.
Table of Content
- What is Inconel 625 Buttweld Fittings?
- Inconel 625 Pipe Fittings Specification
- Equivalent Material of Inconel 625 Buttweld Fittings
- Different Types of Inconel Alloy 625 Pipe Fittings
- Specialized in Inconel 625 Buttweld Fittings
- Chemical Properties Of Inconel 625 Pipe Fittings
- Inconel 625 Buttweld Fittings Mechanical Properties
- Inconel 625 Buttweld Fitttings Weight Chart
- Inconel 625 Seamless Butt Weld Pipe Fittings Tolerance Chart
- Sch 80 Inconel Alloy 625 Pipe Fittings Dimensions
- Inconel 625 Seamless Pipe Fittings Standards
- ASME B16.9 Inconel 625 Fittings Pressure-Temperature Ratings
- Inconel 625 Pipe Fittings Price List
- Typical Application of Inconel Alloy 625 Pipe Fittings
- Inconel 625 Buttweld Fittings Value Added Services
- Export Destinations For Inconel 625 Buttweld Pipe Fittings
625 Inconel Buttweld Fittings Manufacturer, Inconel 625 Buttweld Fittings Suppliers, Inconel 625 Elbow ASME B16.9, Inconel 625 Fittings, UNS N06625 Buttweld Fittings, Inconel® Alloy 625 Reducers, Alloy 625 Buttweld Tee, Inconel 625 Pipe Fittings Stockist in India.
What are Inconel 625 Buttweld Fittings?
Inconel 625 Buttweld Fittings are a type of pipe fitting commonly used in high-temperature and corrosive environments. These fittings are typically composed of nickel-chromium alloy with an addition of molybdenum, which increases the overall strength and corrosion resistance. The 625 Inconel buttweld fittings are superior to other metal alloys due to their excellent tensile strength, fabricability, toughness, and oxidation/corrosion resistance.
What are the features of Inconel 625 Buttweld Fittings?
Inconel 625 buttweld fittings features include:
• High-temperature strength and fatigue resistance.
• Excellent formability and weldability.
• Resistance to chloride stress corrosion cracking.
• Good workability under hot and cold conditions.
• A low coefficient of thermal expansion.
What are the advantages of Inconel 625 Buttweld Fittings?
The advantages of Inconel 625 buttweld fittings include excellent corrosion resistance in acidic marine environments, high-temperature strength, and good workability under hot and cold conditions. These nickel alloy 625 buttweld fittings also offer superior performance under extreme mechanical stress and vibration, making them ideal for highly corrosive environments.
What are the applications of Inconel 625 Buttweld Fittings?
Inconel 625 buttweld fittings are most commonly used in aerospace applications, oil/gas equipment, chemical processing plants, nuclear power plants, pharmaceutical manufacturing facilities, pulp and paper mills, petrochemical industries, heat exchange systems, and many other industrial applications. The availability of these specialized alloys makes it possible to fabricate components that meet extreme performance and corrosion resistance requirements.
Pavan Metal Industries is one of India's leading suppliers of Inconel 625 Buttweld Fittings. The company employs experienced welders to create high-precision Inconel 625 Buttweld Fittings across various industrial applications. Also, our fittings come with a beveled edge, allowing a smooth transition between pipes and pipe sections while providing superior weld strength. In addition to their superior strength, our Inconel 625 Buttweld Fittings are highly resistant to oxidation and corrosion in extreme conditions such as high temperature, pressure, and acidity.
Inconel 625 Buttweld Fittings Grades and Specification
- Standards: ASTM B366 / ASME SB366
- Dimensions: ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
- Size: Seamless Butt Weld Fittings : 1/2″ –
10″
Welded Butt Weld Fittings : 1/2″ – 48″ - Type: Seamless / Welded / Fabricated
- Schedule: Sch 5 TO Sch XXS.
- Thickness: 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.
- Bending Radius: R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
- Form: 90 Elbow, 45 Elbow, Long Radius Elbow' Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, Concentric Reducer,End Cap, Dish Cap, Lap-joint Stub End
Equivalent Material of Inconel 625 Buttweld Fittings
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
Specialized in Inconel 625 Buttweld Pipe Fittings
- Inconel 625 Buttweld Fittings at Best Price In India
- Inconel 625 Buttweld Fittings Manufacturer
- Inconel 625 Pipe Fittings Stockholder
- ANSI/ASME B16.28 Butt Weld Elbow Inconel 625
- Alloy 625 Butt weld Pipe Fittings Supplier
- Inconel 625 LR 180 Return Bends
- Inconel Alloy 625 Eccentric Reducers
- Inconel 2.4856 Welded Pipe Fittings
- Inconel® Alloy 625 Swage Nipple
- Inconel 625 Concentric Reducer
- Inconel 625 45 Deg Short Radius Elbow
- Inconel® Alloy 625 90 Degree LR Elbow
- Alloy 625 Pipe Fittings in India
- Inconel 625 Buttweld Fittings Stockist in Mumbai
- 625 Inconel Butt weld Reducing Cross
- Inconel 625 Seamless Fittings
- Nickel Alloy 625 Pipe Fittings
- Inconel 625 Buttweld Pipe Fittings Stocks
- Inconel 625 Industrial Buttweld Fittings
- Inconel® Alloy 625 Fittings
- 625 Inconel Buttweld Fittings
- Inconel 625 Buttweld Fittings Stockist In India
- Inconel 625 180° Long Radius Elbow
- Inconel 625 Buttweld Equal Cross
- Inconel Alloy 625 Bends
- Inconel 625 Pipe End Cap
- Alloy 625 Pipe Nipple
- ASTM B366 625 Inconel Reducing Elbow
- Inconel Alloy 625 U Bend
- Nickel Alloy 625 Long Stub Ends
- Inconel 625 Two Halve Butt weld Fittings
- ANSI/ASME B16.9 Alloy 625 Pipe Fittings Dimensions
- Inconel 625 Pipe Fittings Exporters
- Inconel® Alloy 625 Two Joint Pipe Fittings
- Alloy 625 1D, 2D, 3D, 5D Buttweld Elbow
- Inconel UNS N06625 Pipe Fittings
- Inconel 625 SR Elbow
- Alloy 625 Buttweld Fittings Wholesale in Mumbai
- Alloy 625 Unequal Pipe Tee
- Inconel 625 Buttweld Fittings Supplier in India
- ASME SB366 625 Inconel Pipe Cap
- Inconel 625 Short Stub Ends
Chemical Properties Of Inconel 625 Buttweld Fittings
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | - | 5.0 max | 58.0 min | 20.0 - 23.0 |
Inconel 625 Buttweld Fittings Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 705 | 42.5 % |
Inconel 625 Buttweld Fitttings Weight Chart
| ASME b16.9 Fittings Normal Pipe Size |
ANSI b16 9 Pipe Fitting O D Y |
Wall Thickness
T (Pipe Elbow Sch.) |
LR 45 Deg Elbows Centre to Face B | SR 45 Deg Elbows Weight |
LR 90 Deg Elbows Centre to Face A | LR 90 Deg Elbows Weight In Below | SR 90 Deg Elbows Centre to Face A | SR 90 Deg Elbows Weight In Below | ||
| millimeter | inch. | millimeter | millimeter | Schedule | millimeter | kilogram | millimeter | kilogram | millimeter | kilogram |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.04 | 38.1 | 0.08 | – | – |
| 3.73 | X.S | 15.9 | 0.05 | 38.1 | 0.10 | – | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.04 | 28.6 | 0.08 | – | – |
| 3.91 | X.S | 11.1 | 0.05 | 28.6 | 0.11 | – | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.09 | 38.1 | 0.15 | 25.4 | 0.11 |
| 4.55 | X.S | 22.2 | 0.11 | 38.1 | 0.19 | 25.4 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.14 | 47.6 | 0.28 | 31.75 | 0.18 |
| 4.85 | X.S | 25.4 | 0.2 | 47.6 | 0.39 | 31.75 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.2 | 57.1 | 0.4 | 38.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.25 | 57.1 | 0.5 | 38.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.36 | 76.2 | 0.72 | 50.8 | 0.5 |
| 5.54 | X.S | 34.9 | 0.5 | 76.2 | 1.0 | 50.8 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 0.73 | 95.2 | 1.46 | 63.5 | 0.95 |
| 7.01 | X.S | 44.4 | 0.91 | 95.2 | 1.82 | 63.5 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 1.1 | 114.3 | 2.18 | 76.2 | 1.45 |
| 7.62 | X.S | 50.8 | 1.45 | 114.3 | 2.86 | 76.2 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 2.1 | 152.4 | 4.2 | 101.6 | 2.8 |
| 8.56 | X.S | 63.5 | 2.9 | 152.4 | 5.7 | 101.6 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 3.4 | 190.0 | 6.8 | 127.0 | 4.8 |
| 9.5 | X.S | 79.4 | 5.0 | 190.0 | 10.0 | 127.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 5.1 | 229.0 | 10.1 | 152.4 | 6.8 |
| 10.97 | X.S | 95.2 | 7.7 | 229.0 | 15.3 | 152.4 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 10.2 | 305.0 | 20.4 | 203.0 | 13.6 |
| 12.7 | X.S | 127.0 | 15.5 | 305.0 | 30.9 | 203.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 18.1 | 381.0 | 36.1 | 254.0 | 24.1 |
| 12.7 | X.S | 159.0 | 24.4 | 381.0 | 48.8 | 254.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 26.6 | 457.0 | 53.1 | 305.0 | 35.4 |
| 12.7 | X.S | 190.0 | 35.0 | 457.0 | 70.0 | 305.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 34.1 | 533.0 | 68.1 | 356.0 | 45.4 |
| 12.7 | X.S | 222.0 | 45.0 | 533.0 | 90.0 | 356.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 45.0 | 610.0 | 89.3 | 406.0 | 59.5 |
| 12.7 | X.S | 254.0 | 59.0 | 610.0 | 118.0 | 406.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 56.5 | 686.0 | 113.0 | 457.0 | 75.6 |
| 12.7 | X.S | 286.0 | 75.0 | 686.0 | 150.0 | 457.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 85.0 | 762.0 | 140.0 | 508.0 | 93.5 |
| 12.7 | X.S | 318.0 | 112.5 | 762.0 | 186.0 | 508.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 101.5 | 914.0 | 203.0 | 610.0 | 135.0 |
| 12.7 | X.S | 381.0 | 134.5 | 914.0 | 269.0 | 610.0 | 179.0 | |||
Inconel 625 Seamless Butt Weld Pipe Fittings Tolerance Chart
| BW Fittings ANSI B16.9 Tolerance (45 And 90 degree) Elbow, End Cap, Tee, Reducer) | 90 Deg. & 45 Deg. Elbow and Tee |
Reducer & Long Lap Joint Stub End |
Cap | |||
| Fitting Dimension (NPS) | Outside Daimeter Diameter at Bevel |
Inside Diameter at End |
Wall Thick T | Center-to-End Dimension A ,C ,B |
Over-all Length H |
Over-all Length F |
| 1/2 to 2-1/2 | +0.06 | Not less than 87.5% of nominal Thickness |
+/- 0.06 | +/- 0.06 | +/- 0.12 | |
| -0.03 | ||||||
| 3 to 3-1/2 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 4 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 5 to 8 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.25 | |
| 10 to 18 | +0.16 | +/- 0.12 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.12 | ||||||
| 20 to 24 | +0.25 | +/- 0.19 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.19 | ||||||
| 26 to 30 | +0.25 | +/- 0.19 | +/- 0.12 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
| 32 to 48 | +0.25 | +/- 0.19 | +/- 0.19 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
Schedule 80 Inconel 625 Pipe Fittings Dimensions
| NPS (Normal Pipe Size) | O.D. (Outside Diameter) | Ave. I.D. (Inside Diameter) |
Mani. WALL |
Normal Weight |
Maxi. W.P. psi |
| 1/4" | .540 | .282 | .119 | .105 | 1130 |
| 3/8" | .675 | .403 | .126 | .146 | 920 |
| 1/2" | .840 | .526 | .147 | .213 | 850 |
| 3/4" | 1.050 | .722 | .154 | .289 | 690 |
| 1" | 1.315 | .936 | .179 | .424 | 630 |
| 1-1/4" | 1.660 | 1.255 | .191 | .586 | 520 |
| 1-1/2" | 1.900 | 1.476 | .200 | .711 | 470 |
| 2" | 2.375 | 1.913 | .218 | .984 | 400 |
| 2-1/2" | 2.875 | 2.290 | .276 | 1.500 | 420 |
| 3" | 3.500 | 2.864 | .300 | 2.010 | 370 |
| 3-1/2" | 4.000 | 3.326 | .318 | 2.452 | 350 |
| 4" | 4.500 | 3.786 | .337 | 2.938 | 320 |
| 5" | 5.563 | 4.768 | .375 | 4.078 | 290 |
| 6" | 6.625 | 5.709 | .432 | 5.610 | 280 |
| 8" | 8.625 | 7.565 | .500 | 8.522 | 250 |
| 10" | 10.750 | 9.493 | .593 | 12.635 | 230 |
| 12" | 12.750 | 11.294 | .687 | 17.384 | 230 |
| 14" | 14.000 | 12.410 | .750 | 20.852 | 220 |
| 16" | 16.000 | 14.213 | .843 | 26.810 | 220 |
| 18" | 18.000 | 16.014 | .937 | 33.544 | 220 |
| 20" | 20.000 | 17.814 | 1.031 | 41.047 | 220 |
| 24" | 24.000 | 21.418 | 1.218 | 58.233 | 210 |
Inconel 625 Seamless Butt weld Fittings Standards
| ASME B16.9 Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Tees, Crosses, Lap Joint Stub Ends, Caps, Reducers |
| ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| MSS SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
Inconel 625 ASME B16.9 Fittings Pressure-Temperature Ratings
| Pressure-Temperature ratings for ASME B16.9 Buttweld fittings (psig) | |||||
|---|---|---|---|---|---|
| Temperature Ratings | Pressure Class | ||||
| 150 | 300 | ||||
| 1/4 - 1 inch. | 1 1/4 - 2 inch. | 2 1/2 - 3 inch. | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | - | 935 | 750 | 560 |
| 450 | 232 | - | 725 | 600 | 475 |
| 500 | 260 | - | 510 | 450 | 385 |
| 550 | 288 | - | 300 | 300 | 300 |
Inconel 625 Buttweld Fittings Price List
- inconel 625 buttweld equal tee price per kg
FOB Price: US$ 5.80 - 150.00 / Piece - inconel 625 unequal pipe cross
FOB Price: US$ 1.00 - 140.00 / Piece - alloy 625 buttweld reducing tee
FOB Price: US$ 3.00 - 180.00 / Piece - inconel alloy 625 90 deg. pipe bend
FOB Price: US$ 5.00 - 460.00 / Piece - inconel 625 welded pipe fittings
FOB Price: US$ 8.00 - 270.00 / Piece - ansi b16.9 inconel alloy 625 fittings
FOB Price: US$ 3.00 - 450.00 / Piece - alloy 625 pipe fittings price per kg
FOB Price: US$ 6.00 - 590.00 / Piece - top quality inconel 625 buttweld fittings with factory price
FOB Price: US$ 2.00 - 10.00 / Piece - cheap price inconel 625 buttweld pipe fittings
FOB Price: US$ 1.00 - 120.00 / Piece - inconel alloy 625 seamless pipe fittings price per kg
FOB Price: US$ 0.10 - 169.00 / Piece - inconel® alloy 625 butt weld fittings price per ton
FOB Price: US$ 15.00 - 140.00 / Piece - astm b366 inconel alloy 625 fittings
FOB Price: US$ 3.00 - 18.00 / Piece
Inconel 625 Seamless Pipe Fittings Stockists | Inconel Alloy 625 Pipe Fittings Exporters | Inconel 625 Fittings Manufacturers | Inconel 625 Butt weld Fittings | Inconel® Alloy 625 Buttweld Fittings Latest Price | Supplier of Inconel 625 Pipe Fittings | Inconel 625 Buttweld Pipe Fittings Suppliers.
Inconel 625 Buttweld Fittings Value Added Services
- Same Day Shipping
- 24-Hour Emergency Service
- Bending
- Custom Machining Fittings
- Material testing
- Centreless Grinding
- Fabricate pipe Fittings
- Forging
- Hot Forming
- Cold Forming
- Inspection
- Marking
- Heat Treatment ( Hardening & Tempering )
- CNC Machining
- Material As Per Drawing
- Special Packaging & Shipping For Domestic And Export
- Minor Fabrication
Export Destinations For Inconel Alloy 625 Pipe Fittings
Hong Kong, Japan, Russia, Iran, Austria, Taiwan, Serbia, Bhutan, Costa Rica, Angola, Venezuela, Lithuania, Namibia, Bangladesh, New Zealand, Denmark, Gabon, Lahore, Jordan, Belarus, Indonesia, Hungary, Ireland, Trinidad & Tobago, Afghanistan, Libya, Spain, Mexico, Brazil, United Arab Emirates, India, Netherlands, Ghana, Qatar, Algeria, Germany, Portugal, Argentina, Saudi Arabia, Tibet, Poland, Bulgaria, Malaysia, Vietnam, Sweden, Italy, Estonia, Chile, United States, Sri Lanka, Ecuador, Morocco, Switzerland, Zimbabwe, Greece, Belgium, France, Pakistan, Finland, Azerbaijan, United Kingdom, Colombia, Norway, Nigeria, Lebanon, Canada, Czech Republic, Slovakia, Turkey, Iraq, Egypt, Oman, Australia, Nepal, Philippines, Thailand, Tunisia, China, Israel, Yemen, Macau, South Africa, Algiera, South Korea, columbia, Kenya, Kazakhstan, Singapore, Bolivia, Ukraine, Kuwait, Bahrain, Gambia, Romania, Croatia, Peru, Mongolia, Puerto Rico.
Domestic Supply For Inconel 625 Butt weld Fittings
Thiruvananthapuram, Pimpri-Chinchwad, Ludhiana, Nashik, New Delhi, Kanpur, Kolkata, Chandigarh, Ernakulam, Visakhapatnam, Pune, Rajkot, Secunderabad, Howrah, Jaipur, Haryana, Nagpur, Chennai, Surat, Thane, Navi Mumbai, Jamshedpur, Ahmedabad, Ranchi, Bhopal, Gurgaon, Noida, mumbai, Hyderabad, Faridabad, Bengaluru, Indore.
